EITAI3100Cデジタル土壌抵抗率計

EITAI3100Cデジタル土壌抵抗率計

$499.00

EITAI3100Cデジタル土壌抵抗率計

$499.00

【ハイテクノロジー】EITAI3100Cデジタル土壌抵抗率テスターは、輸入されたFFT(高速フーリエ変換アルゴリズム)とAFC(自動周波数制御)技術を搭載しています。独自の妨害防止能力と環境適応性により、高い再試験の一貫性を実現します。

【多機能】EITAI3100C地盤アース抵抗テスターは、接地抵抗、土壌抵抗率、接地電圧、接地線漏洩電流、交流電流、直流抵抗の現場測定用に特別に設計および製造されています。

【デジタル化】EITAI絶縁抵抗計は、2,000セットのデータを保存し、USB経由でPCにデータをアップロードし、リアルタイムで監視することができます。

【簡単な操作】カラータッチスクリーンとボタンでワンタッチ操作。画面に表示される内容が豊富なので、データを一目で簡単に確認できます。

3100C 1

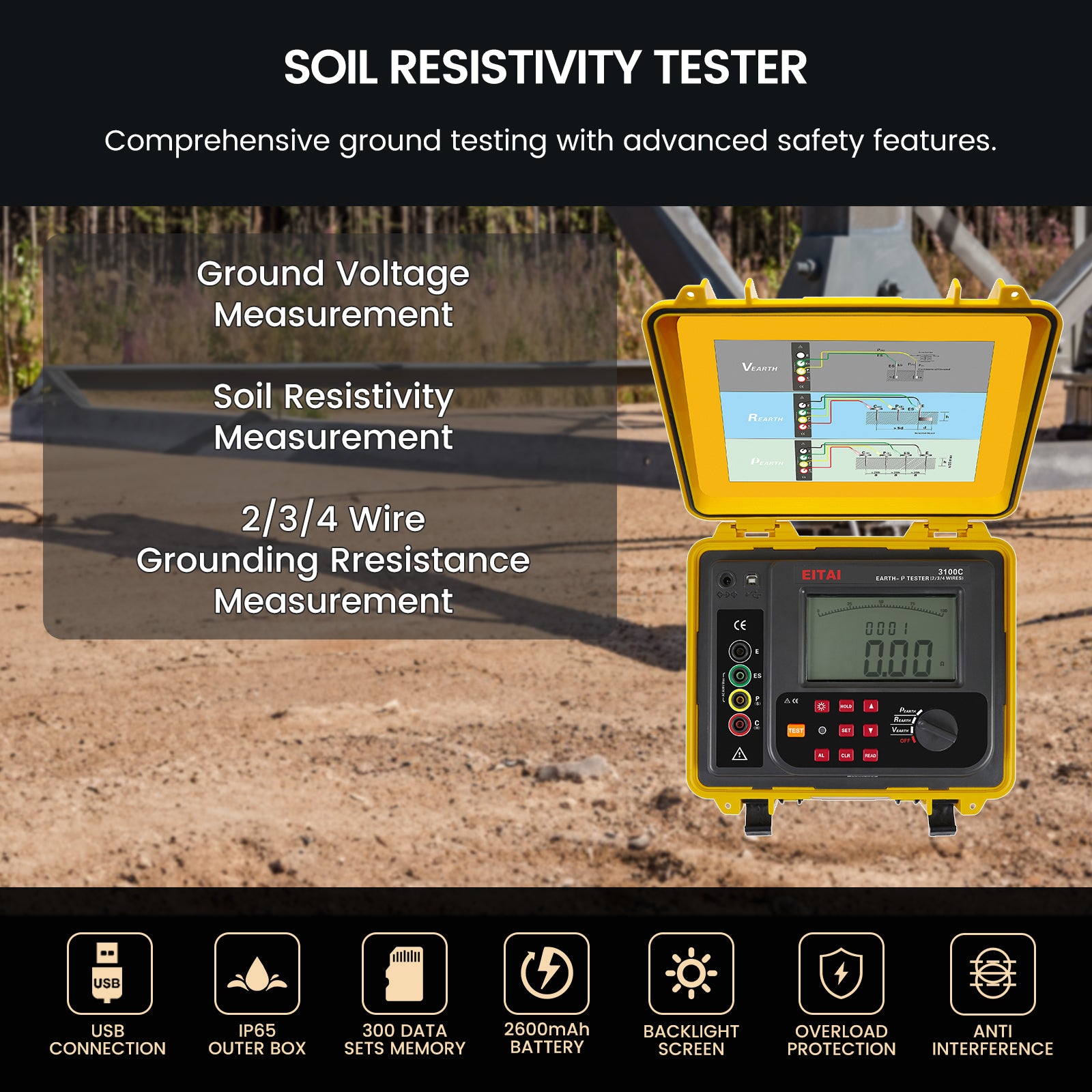

EITAI3100Cアース抵抗/土壌抵抗率テスター は、 アース抵抗、土壌抵抗率、アース電圧を測定するために設計された多機能で高度なデジタル機器です。これは、 電力会社、通信、気象、建設、雷保護、産業用電気機器のメンテナンス などの産業で広く使用されています。

主な機能:

  1. 複数の測定方法 アース抵抗  土壌抵抗率  2線式、3線式、4線式 測定技術をサポートします。 FFT(高速フーリエ変換)  AFC(自動周波数制御) を使用して、干渉を最小限に抑え、精度を向上させます。ノイズを自動的に検出し、安定した測定値に最適な周波数を選択します。
  2. 高精度と干渉防止 高度なデジタル信号処理により、 高精度  再現性が保証されます。強力な電磁干渉のある環境に適しています。
  3. 堅牢でポータブルな設計 IP65防水防塵 筐体、 耐衝撃性、過酷な屋外条件にも対応する耐久性。 大容量充電式リチウムバッテリー で長時間の現場使用が可能です。
  4. 使いやすいディスプレイとインターフェース あらゆる照明条件で鮮明に表示される 白色バックライト付き大型LCD 棒グラフ表示 で直感的な読み取りが可能。 アラーム機能 はカスタマイズ可能なしきい値。
  5. データ保存と接続性 後で分析するために 最大300セットのデータ を保存します。PCへの データ転送 のための USB 接続。 リアルタイム監視、レポート作成、印刷 のための データアップロードソフトウェア が含まれています。
  6. 幅広い用途  接地システムテスト、土壌抵抗率分析、雷保護検査、電気安全コンプライアンス に最適です。

EITAI3100Cデジタル地盤抵抗率テスター

なぜEITAI3100Cなのか?

  • FFTとAFCテクノロジーによる高精度
  • 現場使用のための耐久性と携帯性
  • 複数の測定モード(2/3/4線式)
  • 大容量メモリとデータエクスポート
  • 幅広い産業用途

この抵抗率テスターは、困難な環境で 信頼性が高く、正確で、効率的なアース抵抗と土壌抵抗率の測定が必要な専門家にとって優れた選択肢です。

 General Specification

FunctionEarth resistance measyrement, soil resistivity measurement, and earth voltage measurement
MeasurementPrecision four, three-wire measurement, simple two-wire measurement method to measure earth resistance
Measurement MethodSoil resistivityquadru pole method (Wenner method)
Earth Resistanceated current transformer method, measuring current 20mA Max
Earth voltageaverage rectification (between P(S)-ES interface)

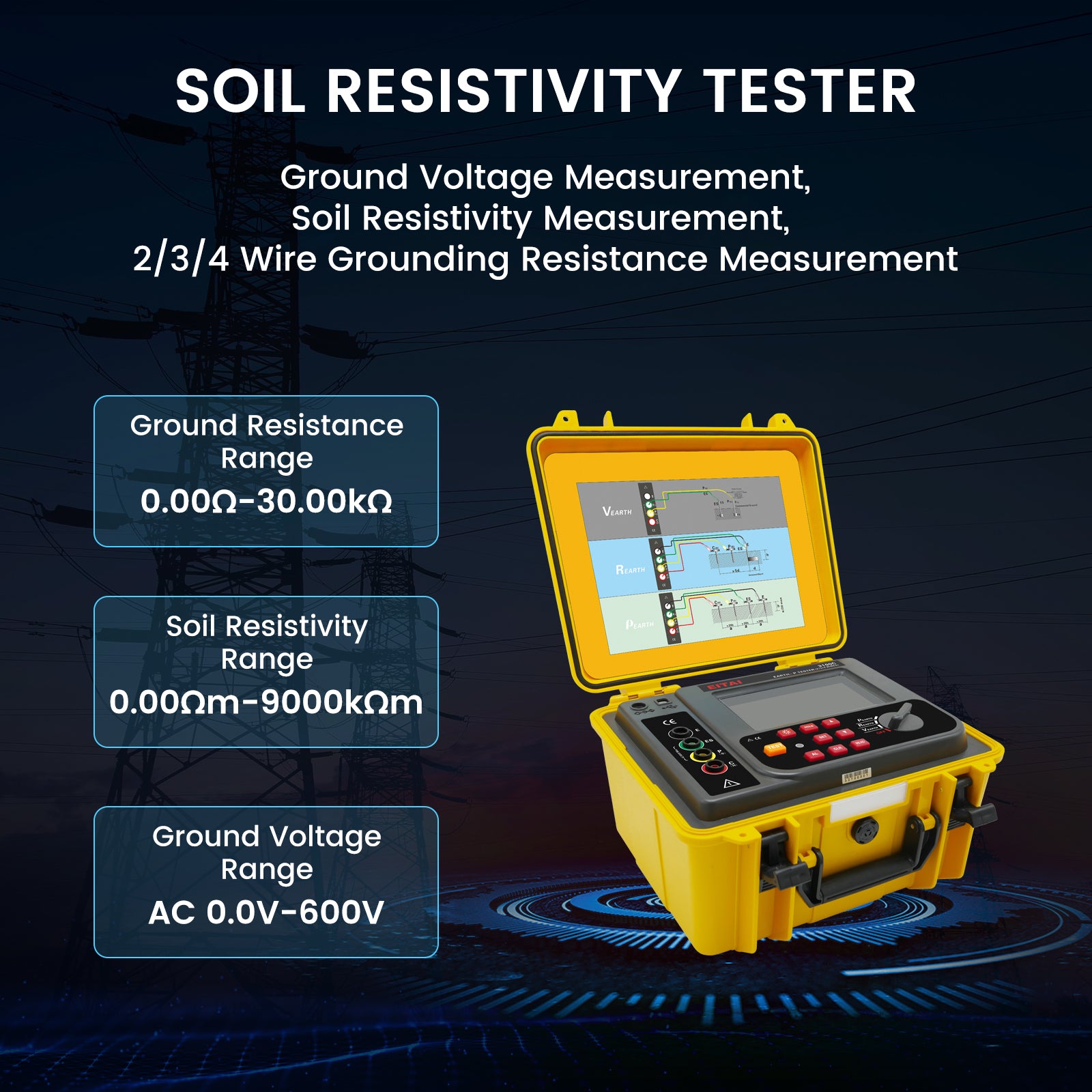

Earth Resistance(R)Range: 0.00Ω-30.00kΩ, Accuracy: ±2%rdg±3dgt
Soil Resistivity (ρ)Range: 0.00Ωm-9000kΩm, Accuracy: (ρ=2πaRa:1m-100m;π=3.14)
Earth VoltageRange: AC 0.0-600V, Accuracy: ±2%rdg±3dgt
Power SupplyDC 7.4V 2600mAh rechargeable lithium battery, the battery is fully charged about 8.4V
Display Mode4-digit max LCD display, white screen backlight(Controllable white screen backlight, suitable for use in dim place)
Measurement InstructionThe LED flash during the measurement, the LCD count backward, and the progress bar chart indicate
LCD Display Domain124mm×67mm
Test Frequency128Hz/111Hz/105Hz/94Hz(AFC)
Test Current>20mA(Sine wave)
Open Circuit Test VoltageAC 40V max
Test Voltage WaveformSine wave
Electrode Spacing RangeRange can be set 1m-100m
Measurement Range Gear ShiftEarth Resistance: 0.00Ω-30.00kΩ Fully automatic shifting; Soil Resistivity: 0.00Ωm-9000kΩm Fully automatic shifting
Standard Test Line4 pieces: red 20m, black 20m, yellow 10m, green 10m each 1 piece
Simple Test Line2 pieces: red 1.6m, black 1.6m each 1 piece
Auxiliary Earth Rod4 pieces:φ9mm×230mm(about 935g)
Measurement TimeEarth voltage: about 3 times/second; Earth resistance, soil resistivity: about 15 seconds/time
Line VoltageMeasurement below AC 600V
Communication InterfaceWith USB interface, software monitoring, storage data can be uploaded to the computer, saved and printed
Memory300 groups, flashing "FULL”symbol indicates that the storage is full
Data Hold and Data AccessData holding function: “HOLD" symbol display; Data access function: “READ" symbol display
Working CurrentStandby: about 20mA (backlight off); Power on when turn on backlight: about 45mA (turn off the backlight 25mA); Measurement: about 100mA (backlight off)
Tester Size and Weight280mm×260mm×160mm; Tester: About 2306g(include battery); total weight: about 6.3kg(include accessory)
Overload ProtectionMeasuring earth resistance: AC 280V/3 seconds between C(H)-E、P(S)-ES ports
Protection LevelIP65(closing)
Withstand VoltageAC 3700V/rms(Between the circuit and the housing)
Insulation ResistanceAbove 20MΩ(500V between the circuit and the housing)
Suitable Safety RegulationIEC61010-1(CAT Ⅲ 300V、CAT IV 150V、pollution level 2); IEC61010-031; IEC61557-1(Earth resistance); IEC61557-5(Soil resistivity); JJG 366-2004; IEC61326(EMC)
Working & Storage Temperature-10℃-40℃, below 80%RH; -20℃-60℃, below 70%RH

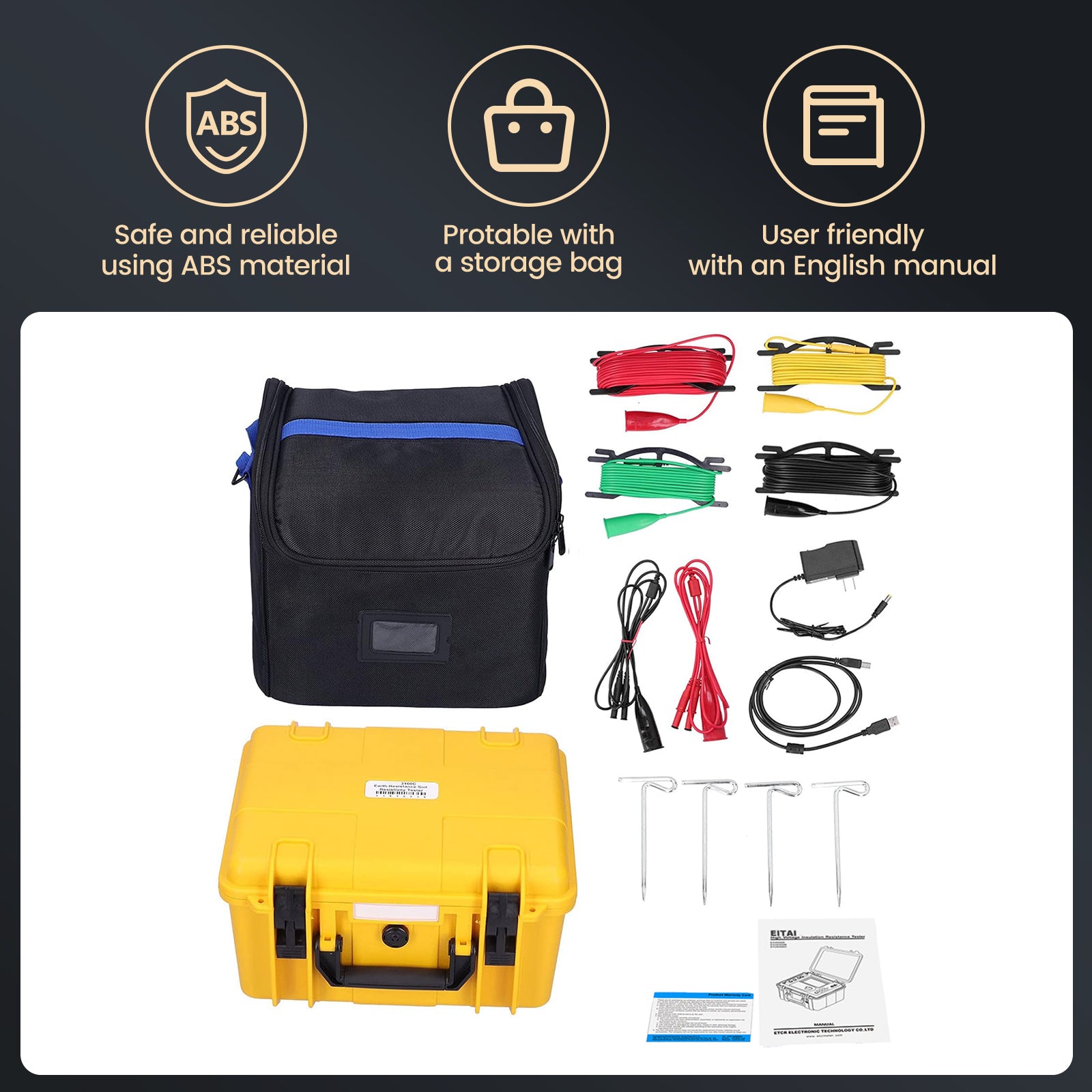

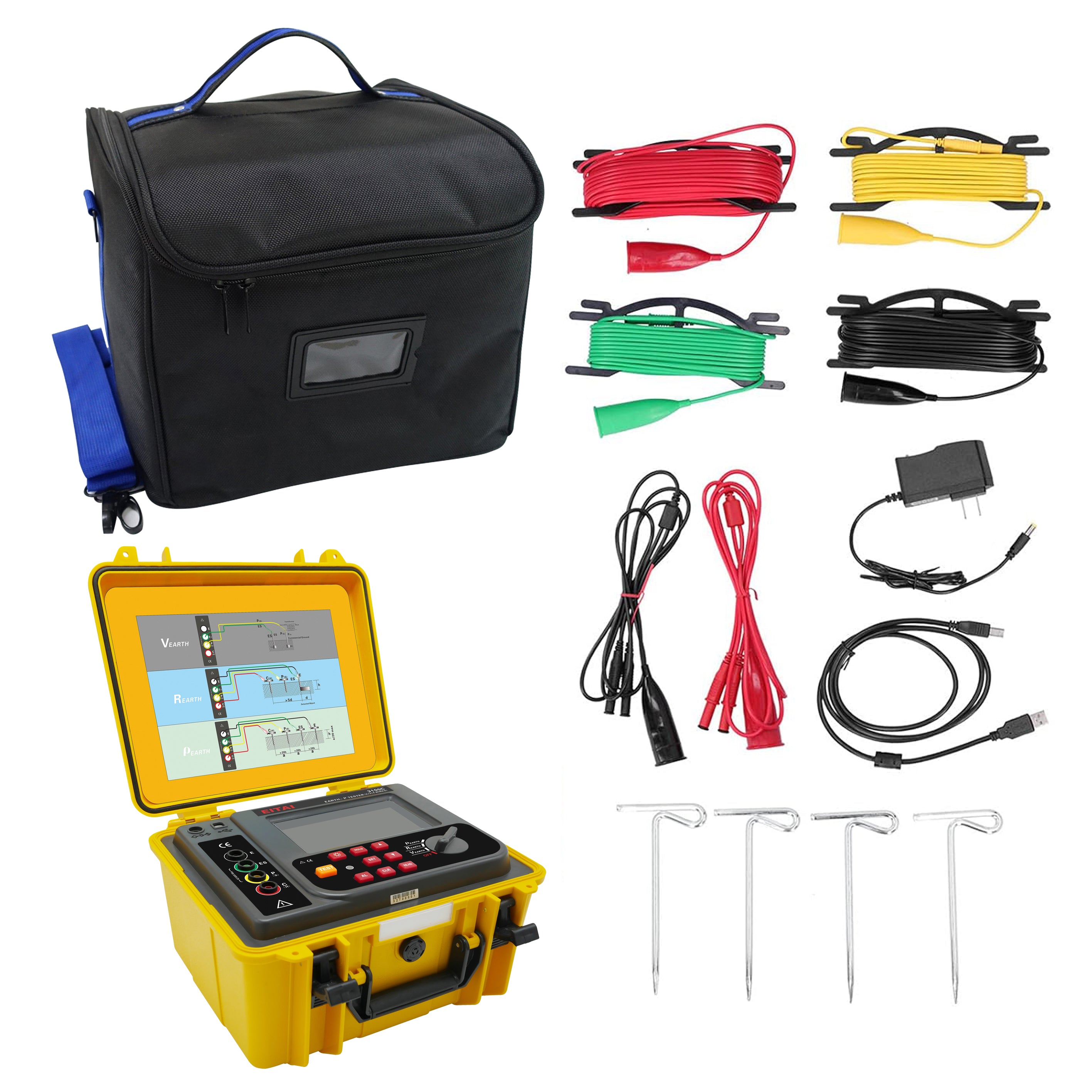

Tester1 PCS
Tester Bag1 PCS
Auxiliary Grounding Rod4 PCS
Test Wires

4 PCS: each for red 20m,

black 20m, yellow 10m, and green 10m

Simple testing Wire2 PCS: each for red 1.6m and black 1.6m
Monitoring Software Disk1 PCS
USB Communication Cable1 PCS
Special charger1 PCS
Warranty Card / Qualification Certificate

1 SET

User Manual

1 PCS
