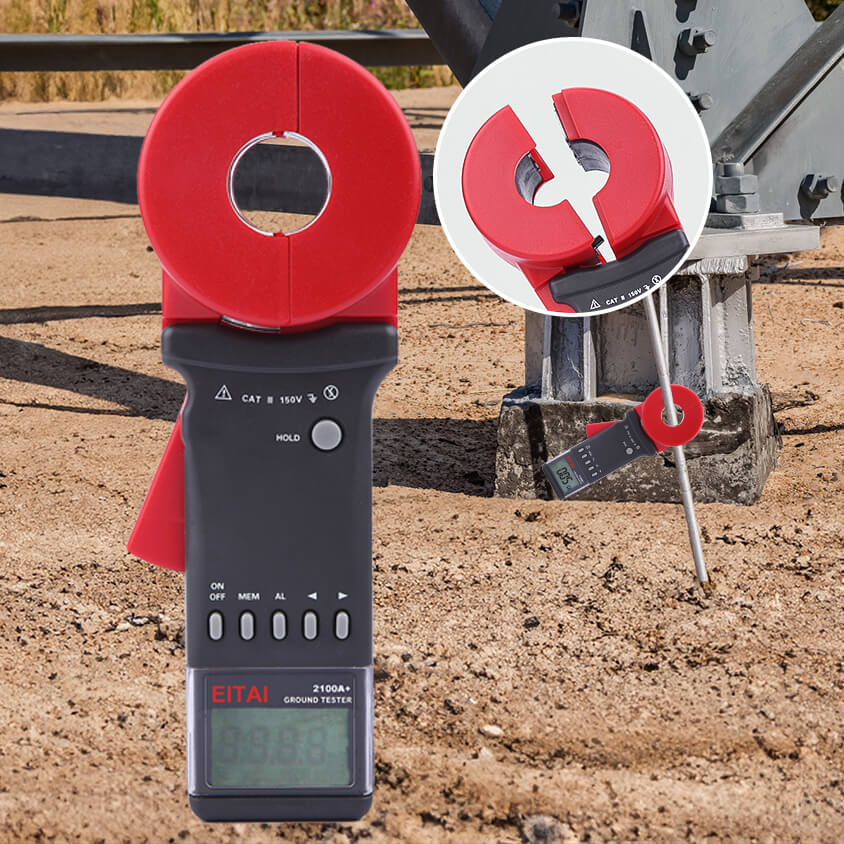

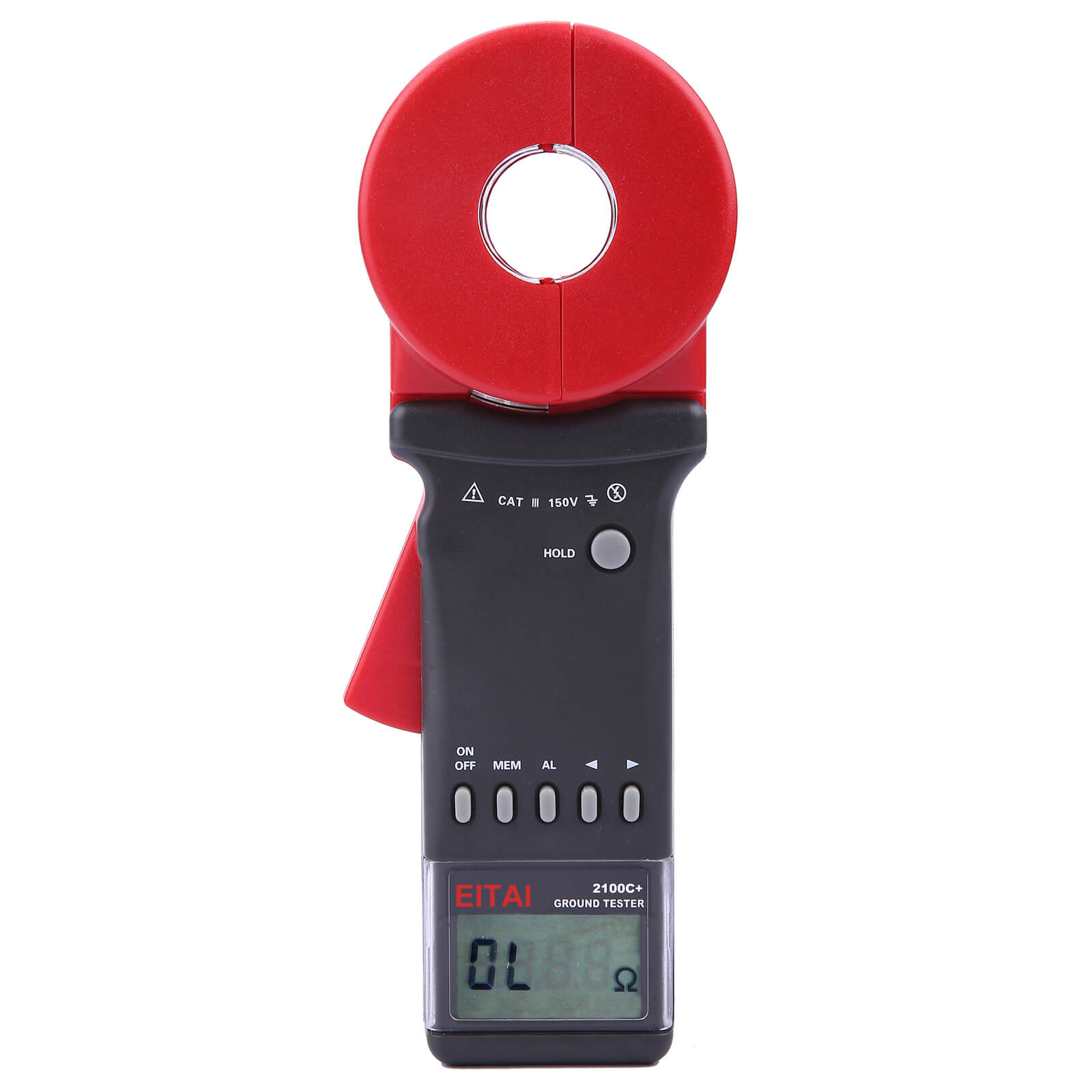

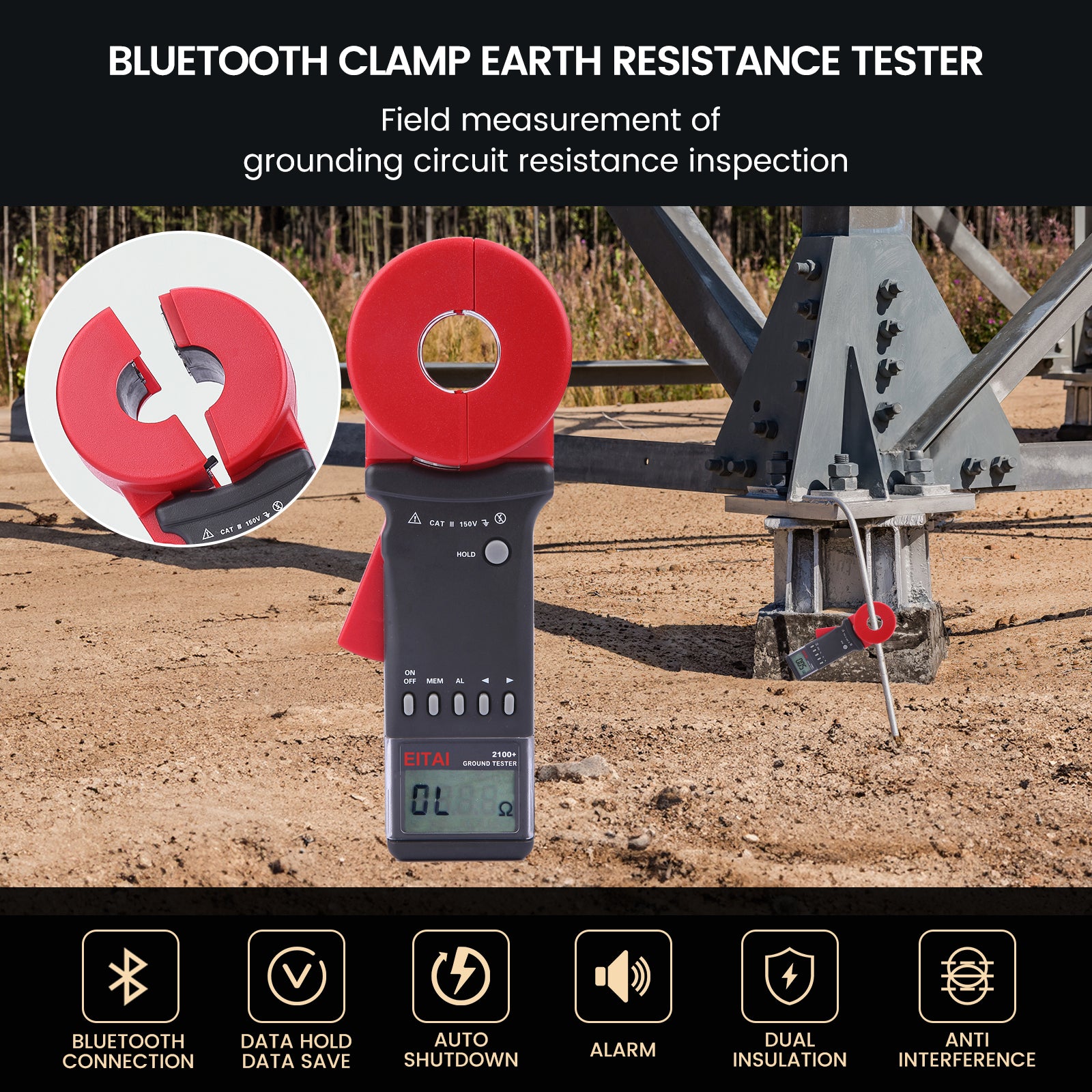

EITAI2100+ Series Clamp-on Ground Resistance Meter

EITAI2100+ Series Clamp-on Ground Resistance Meter

$0.00 $165.00

EITAI2100+ Series Clamp-on Ground Resistance Meter

$0.00 $165.00
Model: EITAI2100A+(0.010Ω-200Ω)

EITAI2100+ Series Clamp Ground Resistance Tester is an upgrade version of our old model, through our company's R&D team on technical quality of the pursuit of excellence and continuous innovation. Its performance is mainly reflected in:

  • Breakthrough in self-test the boot a long time to waiting, start immediately into the test.
  • Breakthrough relay self-test mode, using the most advanced processing algorithms and digital integration technology.
  • Breakthrough the old product too heavy issues, more in line with characteristics of hand-held devices.
  • New design, panel operation with 6 buttons, better performance.
  • Increase sound and light alarm function, with "beep-beep-beep” alarm sound.
  • Increase the interference signal recognition indicator function, with "beep-beep-beep” indicator.

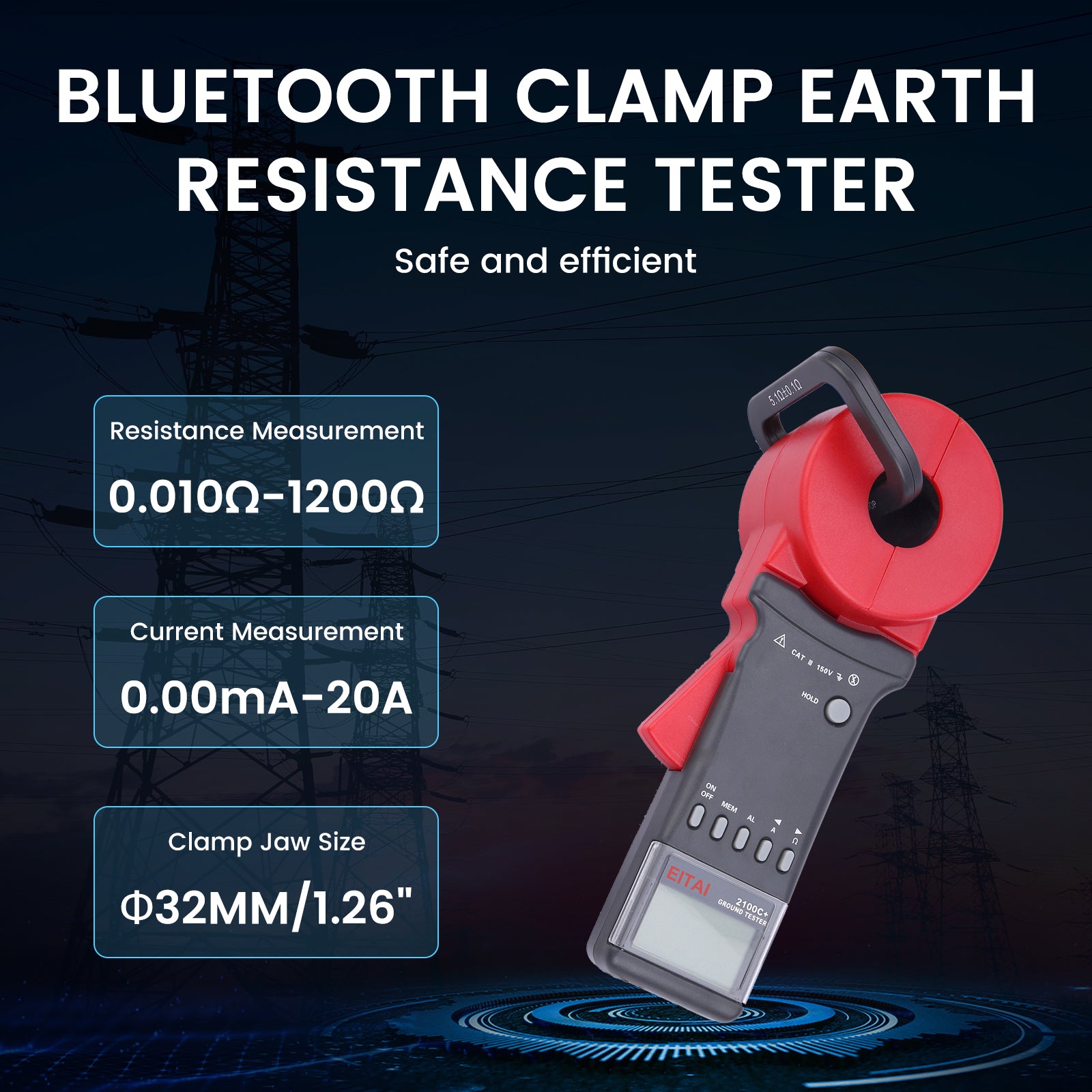

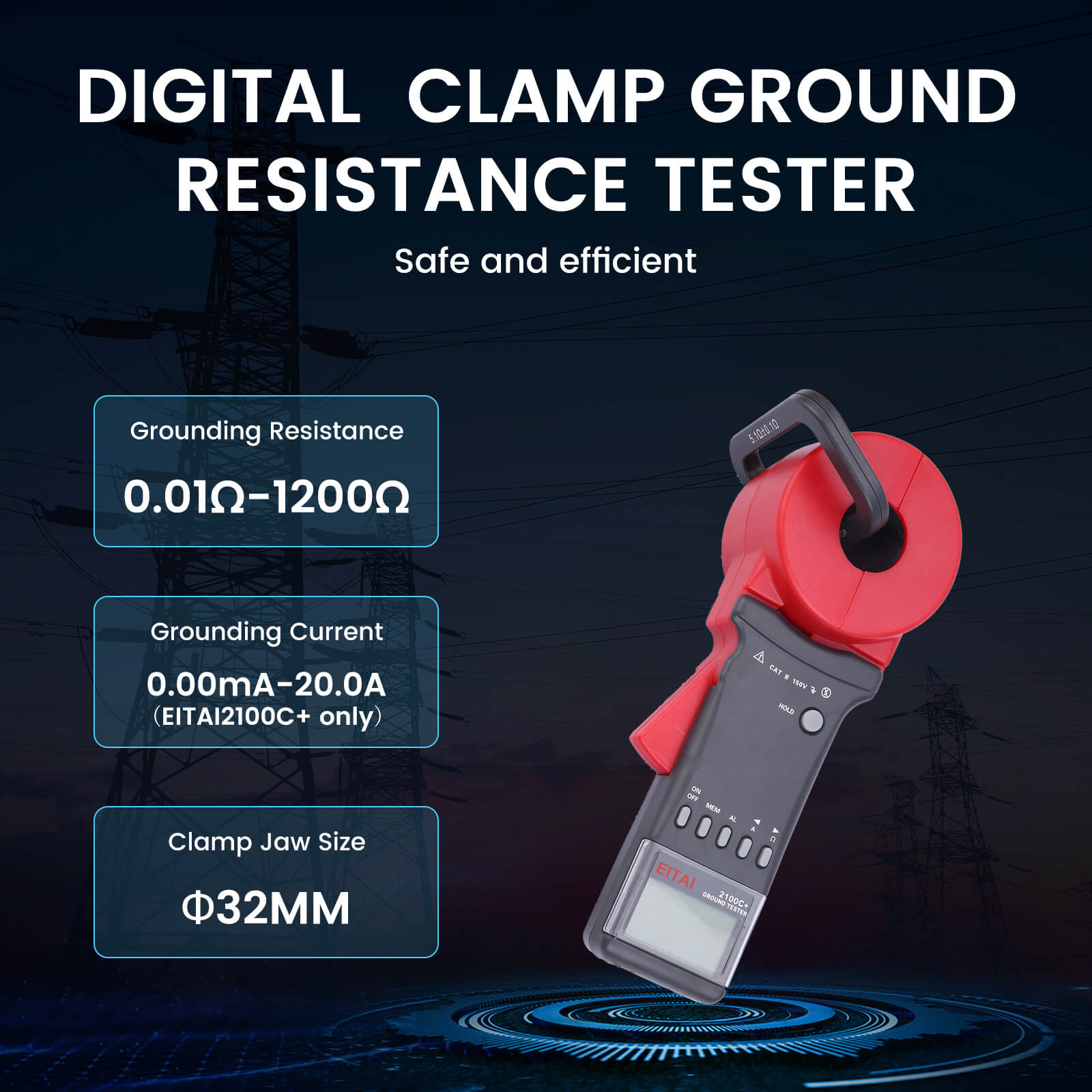

  • Measurement range: 0.010Ω-1200Ω, 0.00mA-20.0A.
  • Stored data 99 Units. Lower power consumption, Maximum operating current less than 50mA.
EITAI2100+ Series Clamp-on Ground Resistance Meter



Field Application

EITAI2100+ Series Clamp-on Ground Resistance Meter

Application of Machine Room earth resistance measurement

  • The machine room of telecommunication system is normally located in the upper deck of the building, which is hard to measure by meg-ohm meter. However, EITAI Clamp meters are capable of such senario.

Application of Substation earth resistance measurement

  • EITAI series clamp meter is suitable for testing the situation of contact and connect of the circuit. With the help of one test line, it can be used to test the connect situation of equipment in station and the grounding system. Single point grounding measurement is allowed for the measurement of grounding resis.

Application of building lightning protection grounding system measurement

  • If the earth poles of the building are independent of each other, the earth resistance can be measured by clamp to testing any of the earth poles, and the earth resistance can also be measured by clamp the building roof lightning arrester.When the measured value is less than the allowable value, the earth electrode is qualified.If the measurement value of the clamp meter is larger than the allowable value, please use ingle earth point method to measurement.

Measurement Range & Accuracy

Measurement ModeMeasuring RangeResolutionAccuracy
Resistance0.010Ω-0.099Ω0.001Ω±(1%rdg+0.01Ω)
0.10Ω-0.99Ω0.01Ω±(1%rdg+0.01Ω)
1.0Ω-49.9Ω0.1Ω±(1%rdg+0.1Ω)
50.0Ω-99.5Ω0.5Ω±(1.5%rdg+0.5Ω)
100Ω-199Ω±(2%rdg+1Ω)
200Ω-395Ω±(5%rdg+5Ω)
400Ω-590Ω10Ω±(10%rdg+10Ω)
600Ω-880Ω20Ω±(20%rdg+20Ω)
900Ω-1200Ω30Ω±(25%rdg+30Ω)

Current

(EITAI2100C+ only)

0.00mA-9.95mA0.05mA±(2.5%rdg+1mA)
10.0mA-99.0mA0.1mA±(2.5%rdg+5mA)
100mA-300mA1mA±(2.5%rdg+10mA)
0.30A-2.99A0.01A±(2.5%rdg+0.1A)
3.0A-9.9A0.1A±(2.5%rdg+0.3A)
10.0A-20.0A0.1 A±(2.5%rdg+0.5A)



Technical Specification

Power Supply6V DC(4 PCS 5 alkaline dry batteries)
LCD Displayer4-digit LCD digital display, 47mm×28.5mm
Resistance Range0.01Ω-1200Ω
Resistance Resolution0.001Ω
Memory99 groups
Sound & Light Alarm"Du-Du-Du-" Alarm sound, press the AL Button to turn on and turn off
Alarm Threshold Setting RangeResistance: 1Ω-199Ω
Clamp Jaw SizeΦ32mm/1.26''
Clamp Opening Size32mm/1.26''
Tester Size260mm×90mm×66mm
WeightAbout 1060g (include battery)
Protection LevelDouble insulation
Structure FeatureClamp type
Measurement Range Gear ShiftFully automatic shifting
External Magnetic Field, Electric Field<40A/m;<1V/m
Single Measurement Time0.5 second
Resistance Measurement Frequency>1kHz
Working Temperature & Humidity-20℃-55℃; 10%RH-90%RH

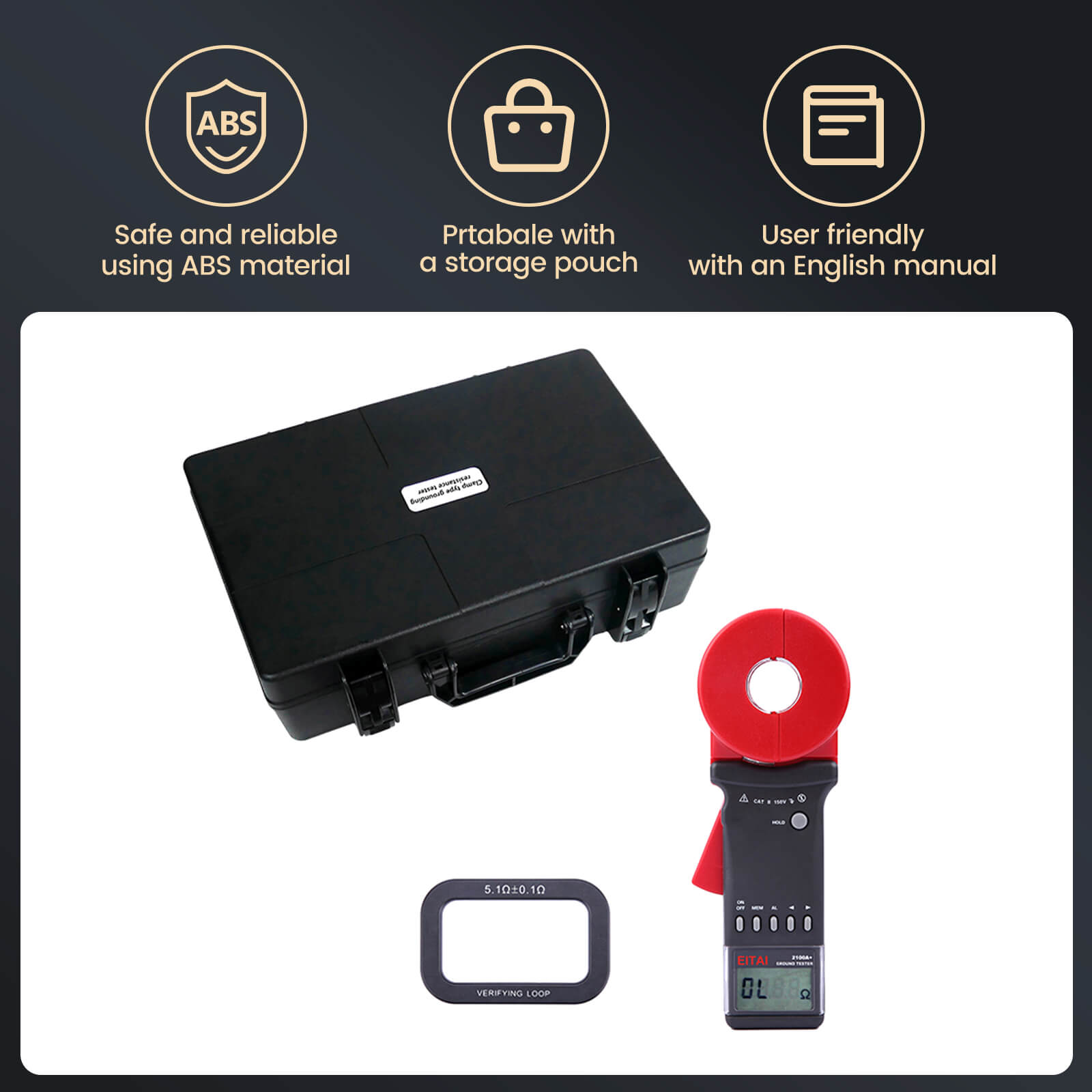

Earth Resistance Tester

1 PCS

Test Ring

1 PCS

Meter Case

1 PCS

Warranty Card / Qualification Certificate

1 SET

User Manual

1 PCS



Product ModelClamp Jaw SizeResistance RangeCurrent RangeAlarm FunctionOthers
EITAI2100A+Φ32mm0.010Ω-200Ω--Yes
EITAI2100+Φ32mm0.010Ω-1200Ω--Yes
EITAI2100C+Φ32mm0.010Ω-1200Ω0.00mA-20AYes
EITAI2000A+65mm×32mm0.010Ω-200Ω--Yes
EITAI2000+65mm×32mm0.010Ω-1200Ω--Yes
EITAI2000C+65mm×32mm0.010Ω-1200Ω0.00mA-20AYes
EITAI2000B+65mm×32mm0.010Ω-1200Ω--YesExplosion proof
EITAI2000X55mm×32mm0.010Ω-500Ω----
EITAI2000XC55mm×32mm0.010Ω-500Ω0.00mA-20A--
