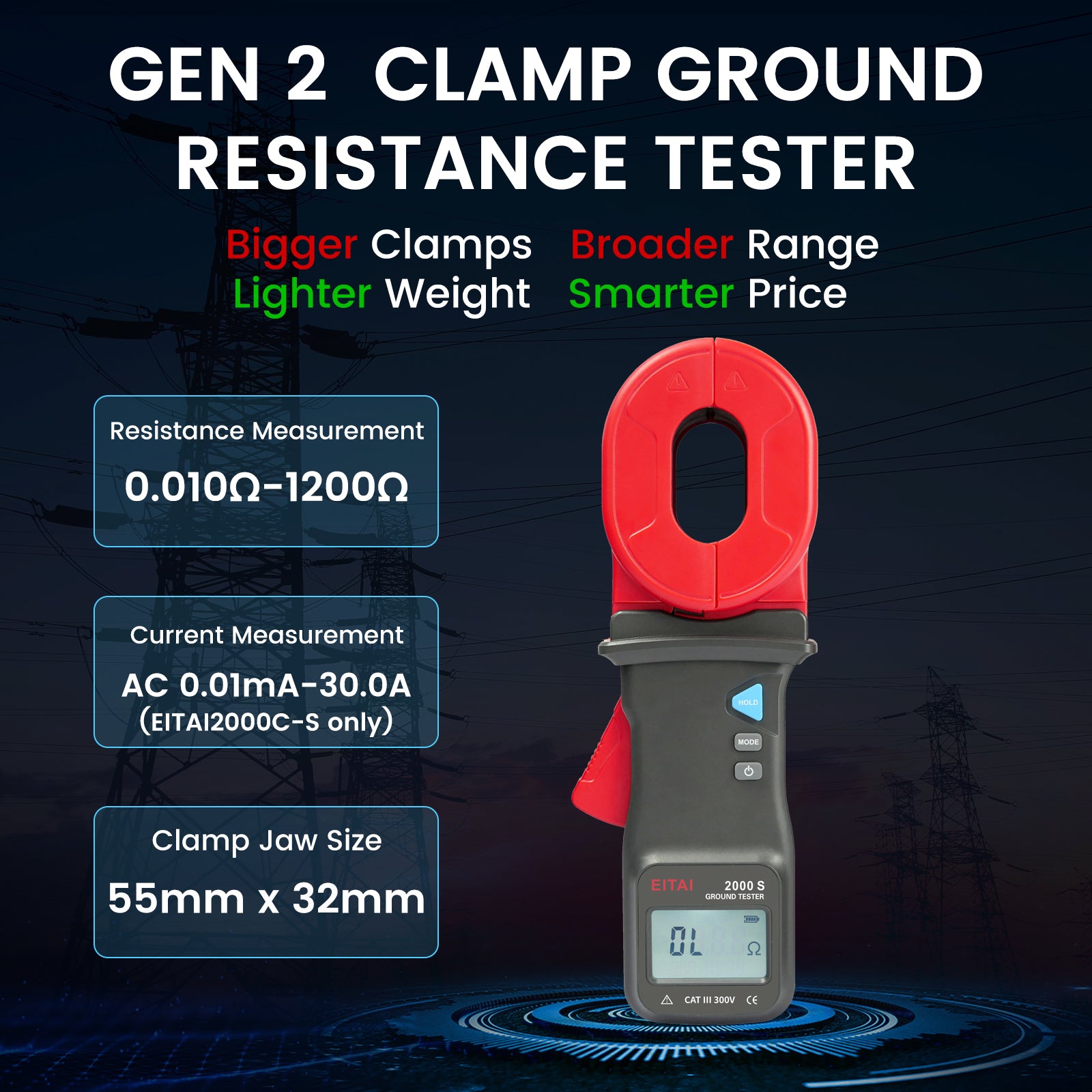

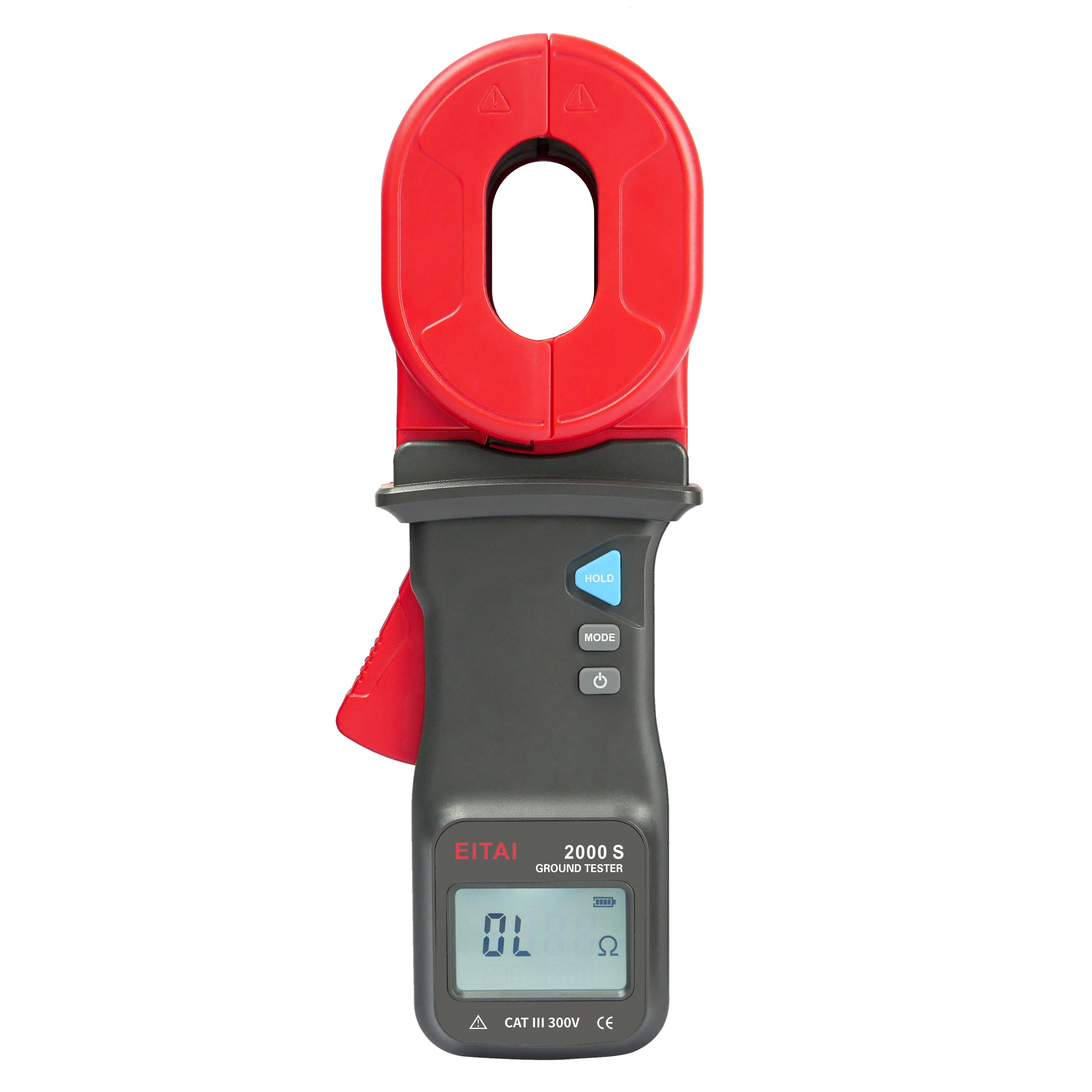

EITAI2000-S Series Gen2 Clamp Earth Resistance Meter

EITAI2000-S Series Gen2 Clamp Earth Resistance Meter

$179.00

EITAI2000-S Series Gen2 Clamp Earth Resistance Meter

$179.00
Model: EITAI2000-S

EITAI2000-S Series Gen2 Clamp Earth Resistance Meter is an upgrade version of our old model, through our company's R&D team on technical quality of the pursuit of excellence and continuous innovation. Its performance is mainly reflected in:

  • 【Precision Measurement for Critical Systems】0.01Ω–1200Ω Extended Range with 0.001Ω Resolution, current measurement 0.01mA-30.0A, engineered for critical Power Grids, Telecom Base Stations & Lightning Protection Networks. Achieves contactless measurement — no grounding lead breakage or auxiliary electrodes required.

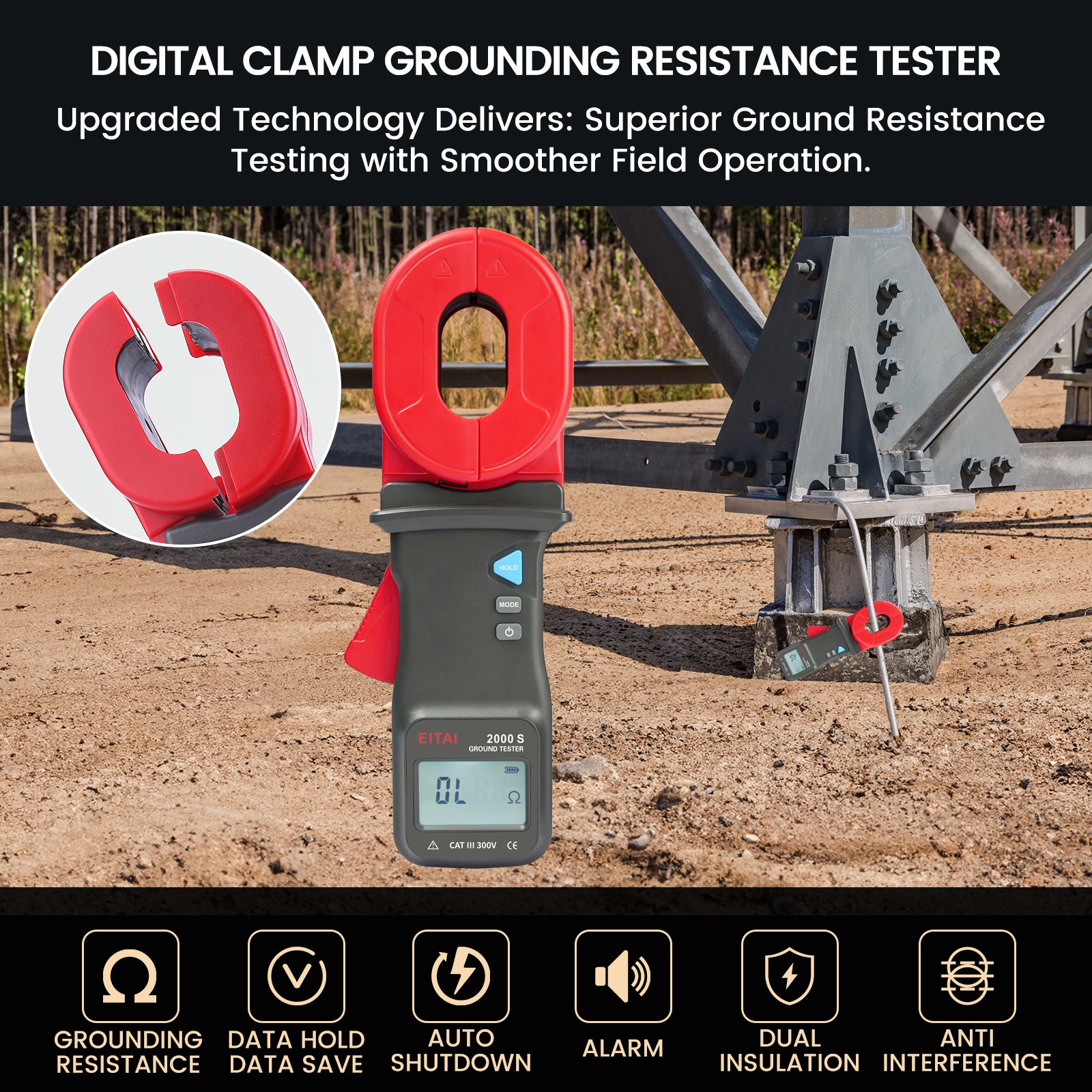

  • 【Wide Compatibility with Grounding Rod】Features a 55×32mm (2.16×1.26in) clamp jaw with advanced loop resistance technology, enabling measurement of flat steel busbars and round ground rods without disassembly. This innovative design allows the clamp-on meter to diagnose ground faults and perform tasks beyond the capability of traditional methods.

  • 【Rapid One-Handed Testing】Optimized one-handed control via intuitive key layout. Delivers results in 0.5 seconds per test (trigger-to-readout), accelerating diagnostics during maintenance cycles.EITAI2000S Series Digital Clamp Ground Resistance Tester equipped with sound and light alarms to alert users when measurements exceed critical values, and stores up to 99 sets of measurement data for easy review and analysis.

  • 【Streamlined & Portable Field Design】Ultra-lightweight 0.88kg (1.9lb) with contoured grip. Minimizes fatigue during extended deployments, validated in prolonged field trials. Handheld form ensures portability and one-button operation for on-site testing.

  • 【Robust Interference Resistance】The Clamp Earth Resistance Meter built with double insulation and 3X noise suppression technology, it effectively mitigates self-generated current interference within grounding bodies, ensuring durability and safety in harsh working environments.

Measurement Range & Accuracy

Measurement ModeMeasuring RangeResolutionAccuracy

Resistance

(EITAI2000AS: 0-500Ω,  EITAI2000S: 0-1000Ω,     EITAI2000CS: 0-1200Ω)

0.010Ω-0.099Ω0.001Ω±(1%rdg+0.01Ω)
0.10Ω-0.99Ω0.01Ω±(1%rdg+0.01Ω)
1.0Ω-49.9Ω0.1Ω±(1%rdg+0.1Ω)
50.0Ω-99.5Ω0.5Ω±(1.5%rdg+0.5Ω)
100Ω-199Ω±(2%rdg+1Ω)
200Ω-395Ω±(5%rdg+5Ω)
400Ω-590Ω10Ω±(10%rdg+10Ω)
600Ω-1200Ω20Ω±(25%rdg+20Ω)

Current

(EITAI2000C-S only)

0.00mA-9.95mA0.05mA±(2.5%rdg+1mA)
10.0mA-99.0mA0.1mA±(2.5%rdg+5mA)
100mA-300mA1mA±(2.5%rdg+10mA)
0.30A-2.99A0.01A±(2.5%rdg+0.1A)
3.0A-9.9A0.1A±(2.5%rdg+0.3A)
10.0A-19.9A0.1 A±(2.5%rdg+0.5A)
20.0A-30.0A0.1 A±(2.5%rdg+1A)



Technical Specification

Power Supply6V DC(4 PCS 5 alkaline dry batteries)
LCD Displayer4-digit LCD digital display, 47mm×28.5mm
Resistance Measurement Range0.010Ω-1200Ω
Resistance Measurement Resolution0.001Ω
Current Range0.00mA-30.0A
Current Resolution0.01mA
Memory99 groups
Sound & Light Alarm"Du-Du-Du-" Alarm sound, press the AL Button to turn on and turn off
Alarm Threshold Setting RangeResistance: 1Ω-199Ω; Current: 1mA-499mA
Clamp Jaw Size55mm×32mm
Clamp Opening Size32mm
Tester Size277mm X100mmX57mm
WeightAbout 880g (include battery)
Protection LevelDouble insulation
Structure FeatureClamp type
Measurement Range Gear ShiftFully automatic shifting
External Magnetic Field, electric Field<40A/m;<1V/m
Single Measurement Time0.5 second
Resistance Measurement Frequency>1kHz
Measured Current Frequency50Hz/60Hz Automatic
Working Temperature & Humidity-10℃-55℃; 10%RH-90%RH

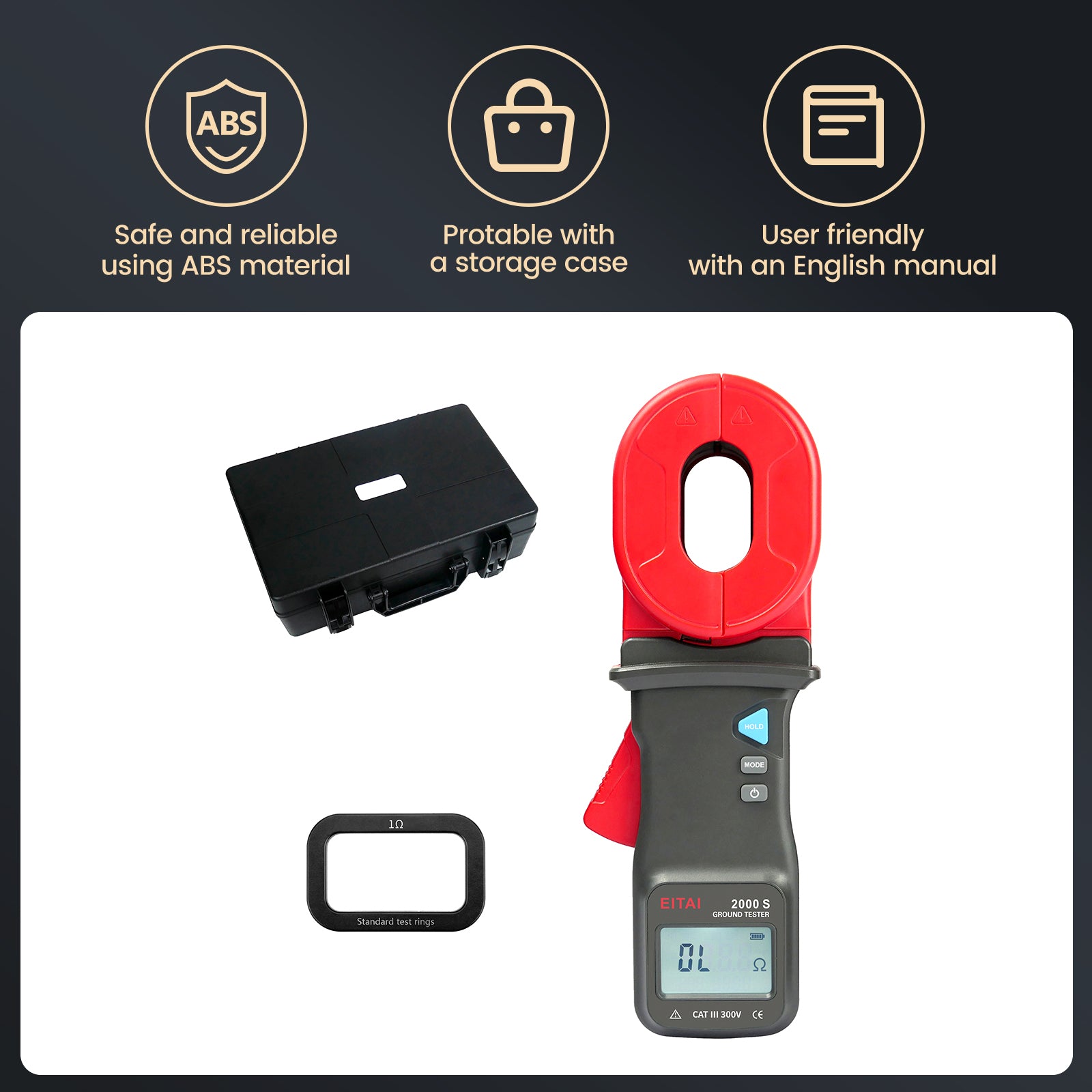

Earth Resistance Tester

1 PCS

Test Ring

1 PCS

Meter Case

1 PCS

Warranty Card / Qualification Certificate

1 SET

User Manual

1 PCS

Product ModelClamp Jaw SizeResistance RangeCurrent RangeAlarm FunctionOthers
EITAI2000A S55mm×32mm0.010Ω-500Ω--YesSmart Control
EITAI2000 S55mm×32mm0.010Ω-1000Ω--YesSmart Control
EITAI2000C S55mm×32mm0.010Ω-1200Ω0.00mA-30AYesSmart Control
EITAI2100A+Φ32mm0.010Ω-200Ω--YesBluetooth
EITAI2100+Φ32mm0.010Ω-1200Ω--YesBluetooth
EITAI2100C+Φ32mm0.010Ω-1200Ω0.00mA-20AYesBluetooth
EITAI2000A+65mm×32mm0.010Ω-200Ω--YesBluetooth
EITAI2000+65mm×32mm0.010Ω-1200Ω--YesBluetooth
EITAI2000C+65mm×32mm0.010Ω-1200Ω0.00mA-20AYesBluetooth
EITAI2000B+65mm×32mm0.010Ω-1200Ω--YesExplosion proof
