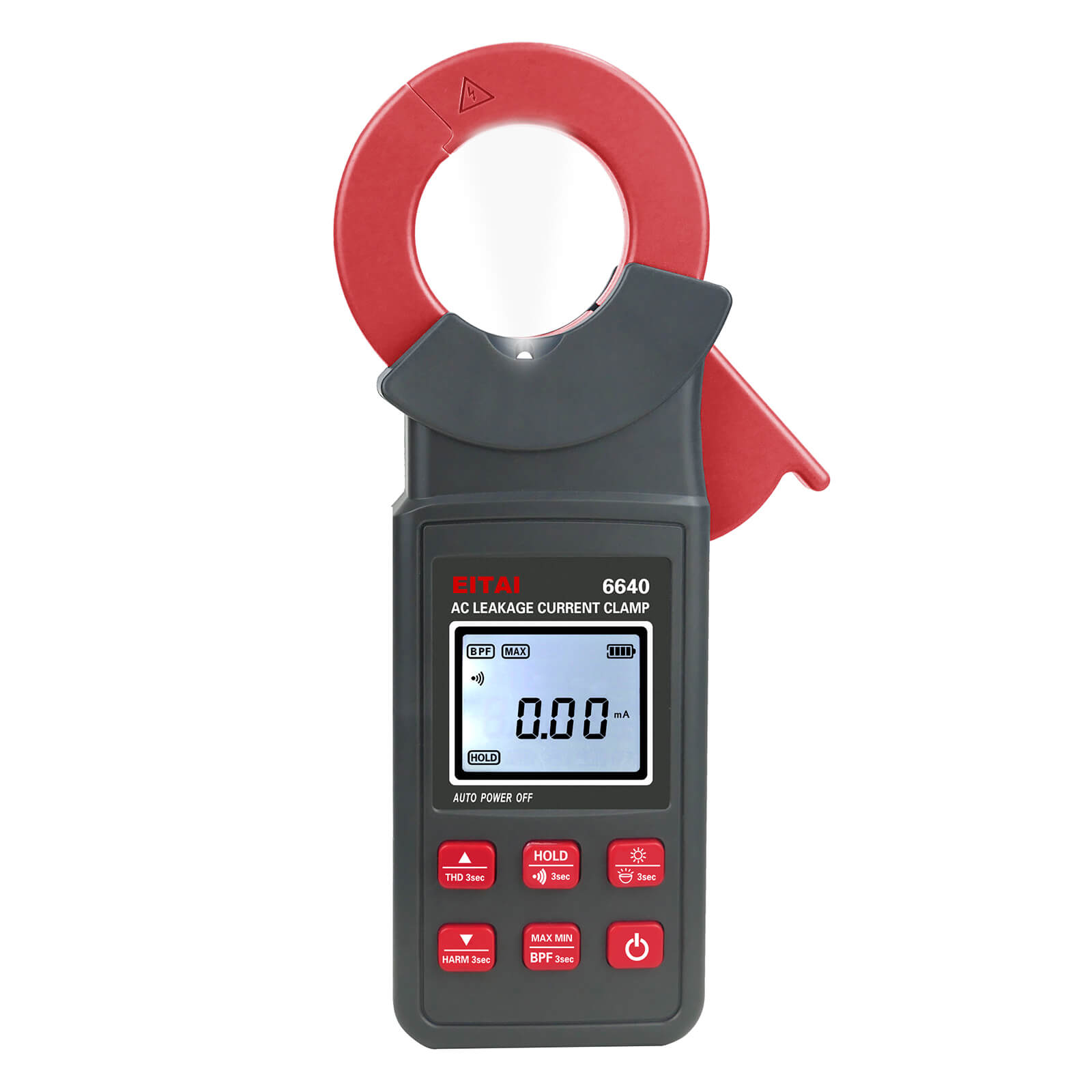

EITAI6640 Series Leakage Current Clamp Meter

EITAI6640 Series Leakage Current Clamp Meter

$0.00 $115.00

EITAI6640 Series Leakage Current Clamp Meter

$0.00 $115.00
Model: EITAI6640(0.0mA-300A, 1.57"/Φ40mm)

EITAI6640 Series Leakage Current Clamp Meter, also known as clamp type leakage current tester, clamp current meter, multifunctional clamp type leakage current meter, down lead current tester, which is used for measurement of AC leakage current, AC current. The meter has test functions of true effective value, filtering, maximum/minimum/average value, harmonics, distortion rate, etc. The iron core of meter adopts slope film alloy technology and double-layer shielding technology, almost unaffected by the external magnetic field, ensuring high precision, high stability and high reliability of uninterrupted measurement all year, which is widely used in fields of electricity, communication, meteorology, railway, oil field, construction, metrology, scientific research and teaching unit, industrial and mining enterprise, etc.

EITAI6640 Series Leakage Current Clamp Meter can test current in the frequency range of 40Hz-1kHz. The meter with backlight, flashlight, data storage, Bluetooth communication, etc. And use large capacity lithium battery Type-C charging port, which is a new type of essential tool for electrical safety testing.

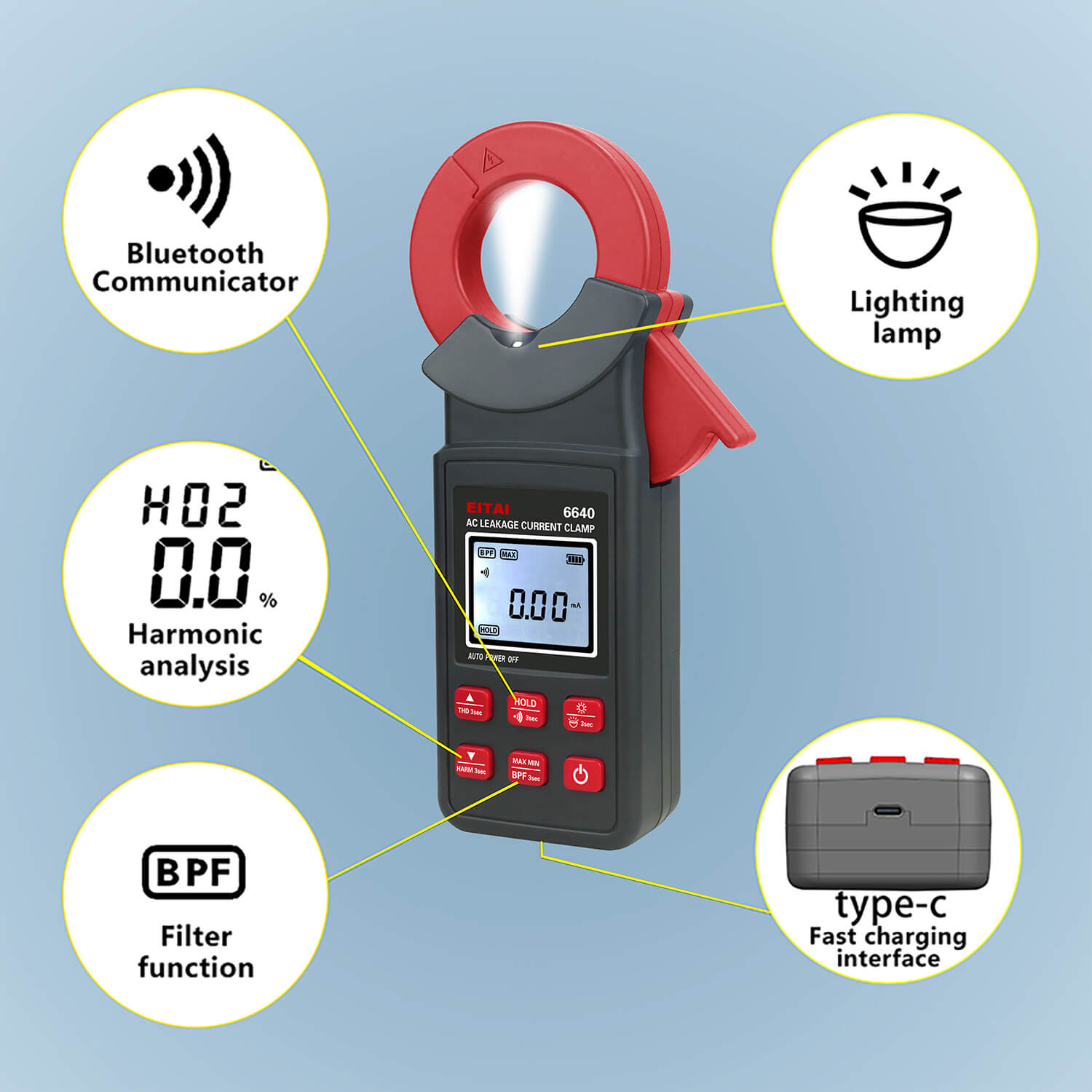

  1. Wide frequency, can test current in the frequency range of 40Hz-1kHz, which is essential tool for electrical safety testing.
  2. Double-layer shielding technology, high accuracy, strong anti-interference ability and 10uA solution.
  3. The meter has test functions of true effective value, filtering, maximum/minimum/average value, harmonics, distortion rate, etc.
  4. Memory: data storage 2000 groups.
  5. Bluetooth communication function.
  6. Flashlight function
  7. Lithium battery(Type-C charging port).
Power SupplyLithium battery DC 3.7V/1000mAh
LCD Size43mm×38mm; display area: 36.5mm×29mm
LCD BacklightYes
Measurement Range

EITAI6640: AC 0.00mA - 300A

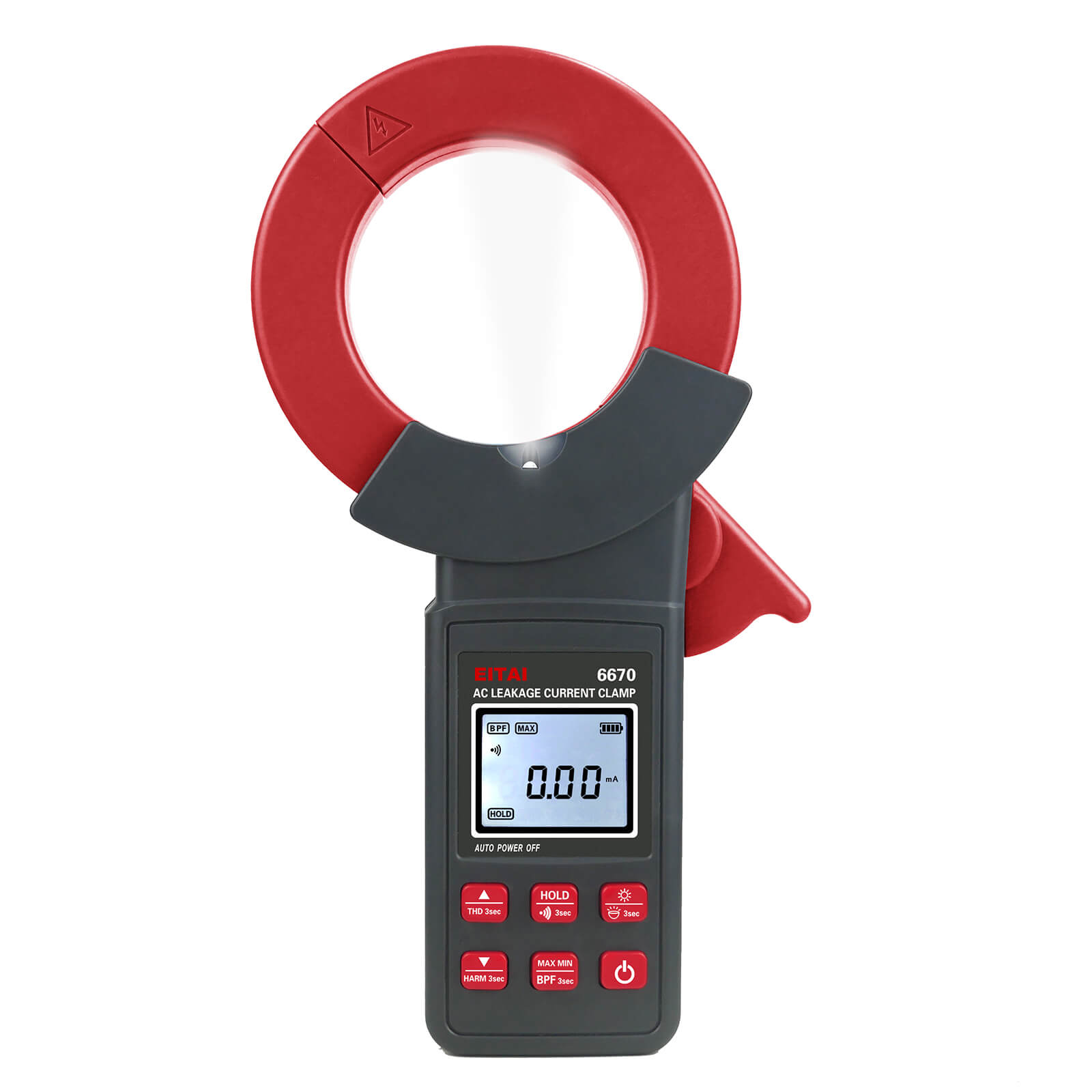

EITAI6670: AC 0.00mA - 1200A

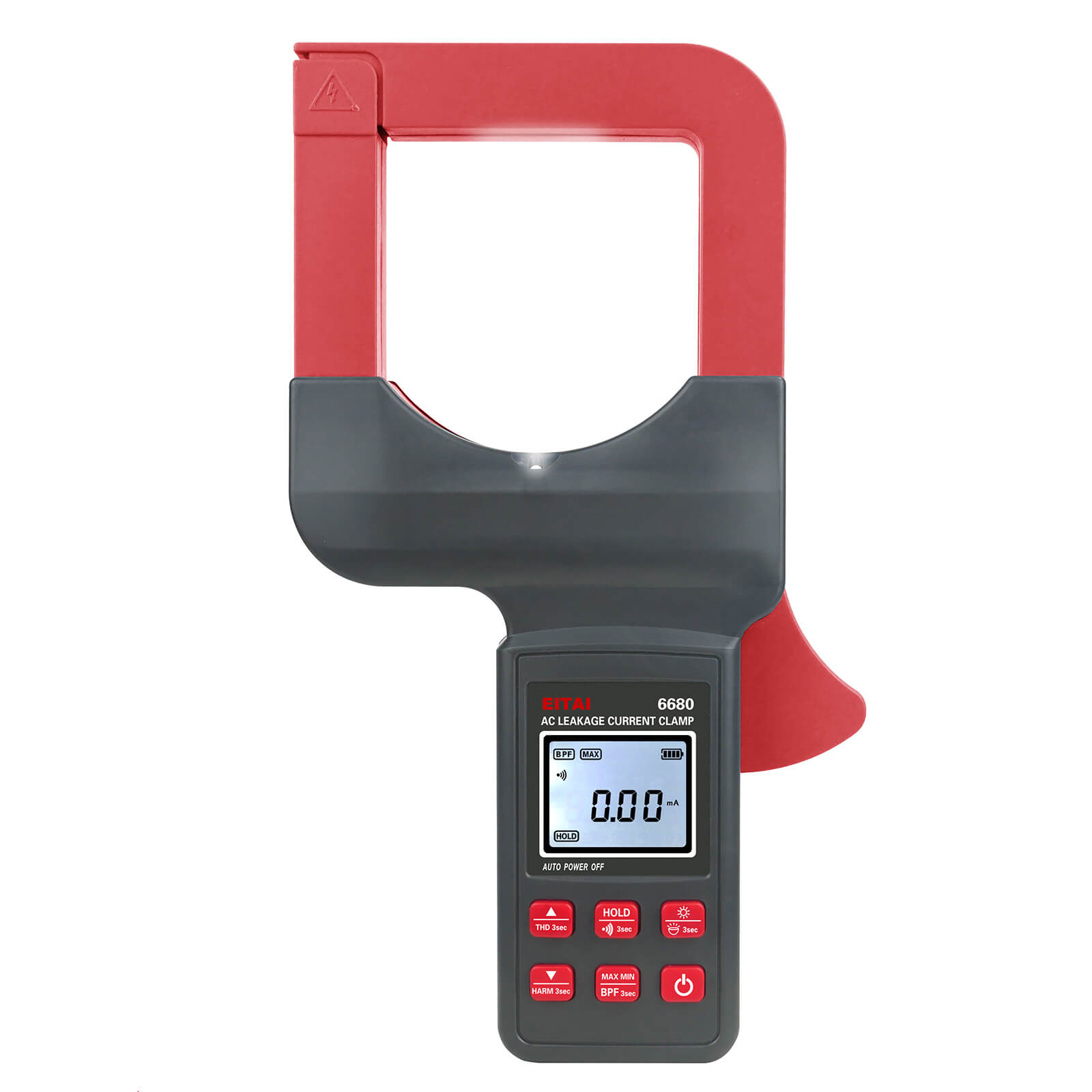

EITAI6680: AC 0.00mA - 2000A
Resolution10uA
Measurement Accuracy0.00mA-999mA            ±1.5%rdg±5dgt
1.00A-300A              ±1.5%rdg±5dgt
300A-599A               ±2.0%rdg±5dgt   (EITAI6670, EITAI6680 ONLY)
600A-1199A              ±2.5%rdg±5dgt   (EITAI6670, EITAI6680 ONLY)
1200A-2000A             ±2.5%rdg±5dgt   (EITAI6680 ONLY)
Clamp Jaw Size

EITAI6640: Φ40mm/1.57''
EITAI6670: Φ70mm/2.76''
EITAI6680: 80mm×80mm(3.15''x3.15'')
Meter Size

EITAI6640: 192mm×96mm×40mm
EITAI6670: 237mm×131mm×40mm
EITAI6680: 253mm×145mm×40mm
Weight

EITAI6640: 256g (include battery)
EITAI6670: 477g (include battery)
EITAI6680: 664g (include battery)
FlashlightYes
Filter FunctionFilter open: 40Hz-70Hz; Filter close: 40Hz-1kHz
Harmonic Analysis21 times (above 10mA)
Distortion RateYes (above 10mA)
Max/Min ValueYes
Average ValueYes
Data HoldYes
Memory2000 groups (storage through APP)
Overflow DisplayExceed measure range overflow function: “OL”symbol display
Bluetooth CommunicationYes, can test or view the test result on mobile after install the App
Automatic Shutdown5 Minutes after power on, the meter shut down automatically without any operation to reduce battery consumption.
Battery Level4-cell battery display
Sampling Rate2 times/second
Working Current60mA (turn on flashlight 72mA)
Line VoltageLine testing below AC600V
Insulating StrengthAC 3700V/rms(between the core and outside shell)
Suitable Safety
Standard
IEC1010-1, IEC1010-2-032, Pollution level 2, CAT Ⅲ(600V)
Working Condition-10℃-50℃; below 80%RH
Storage Condition-20℃-60℃; below 70 %RH

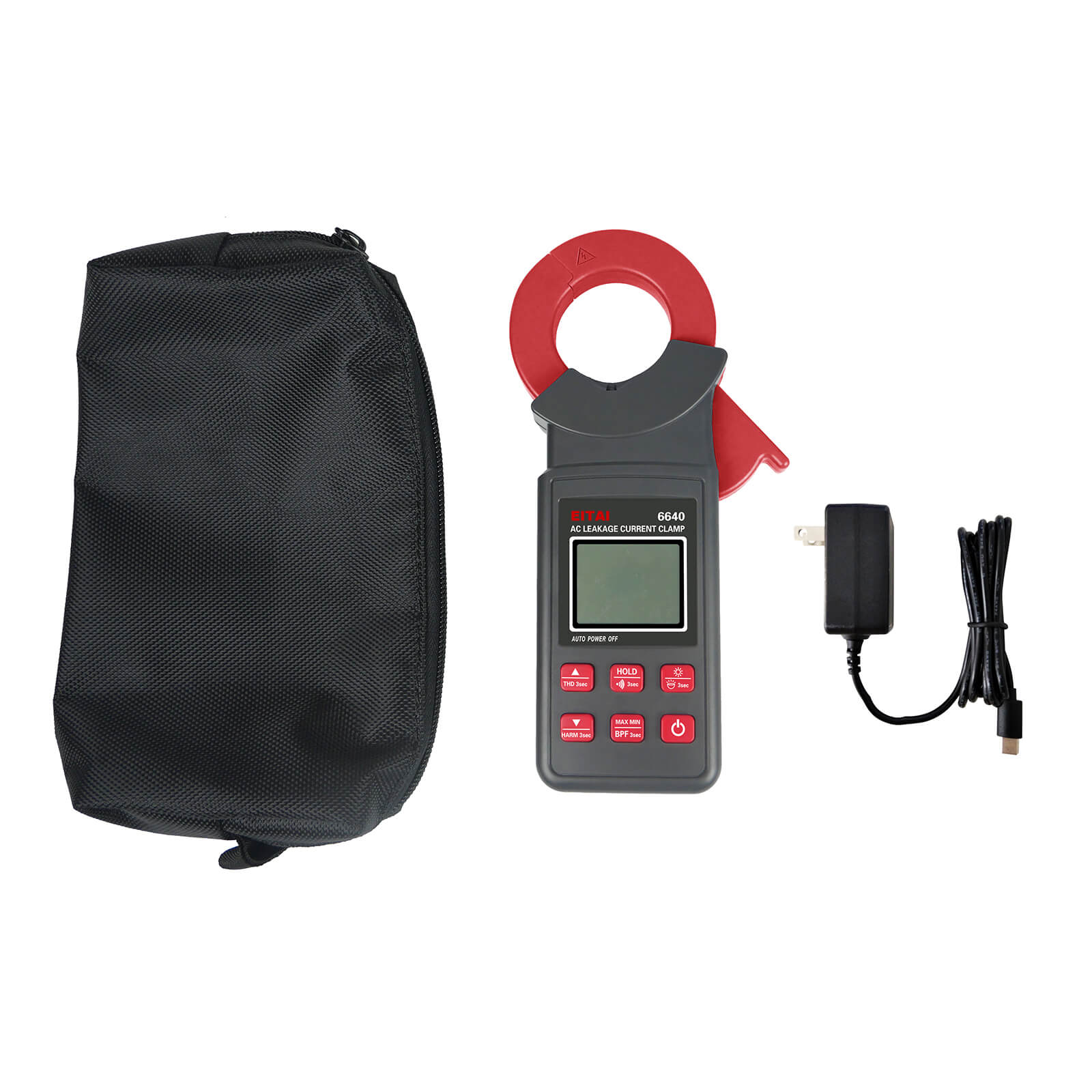

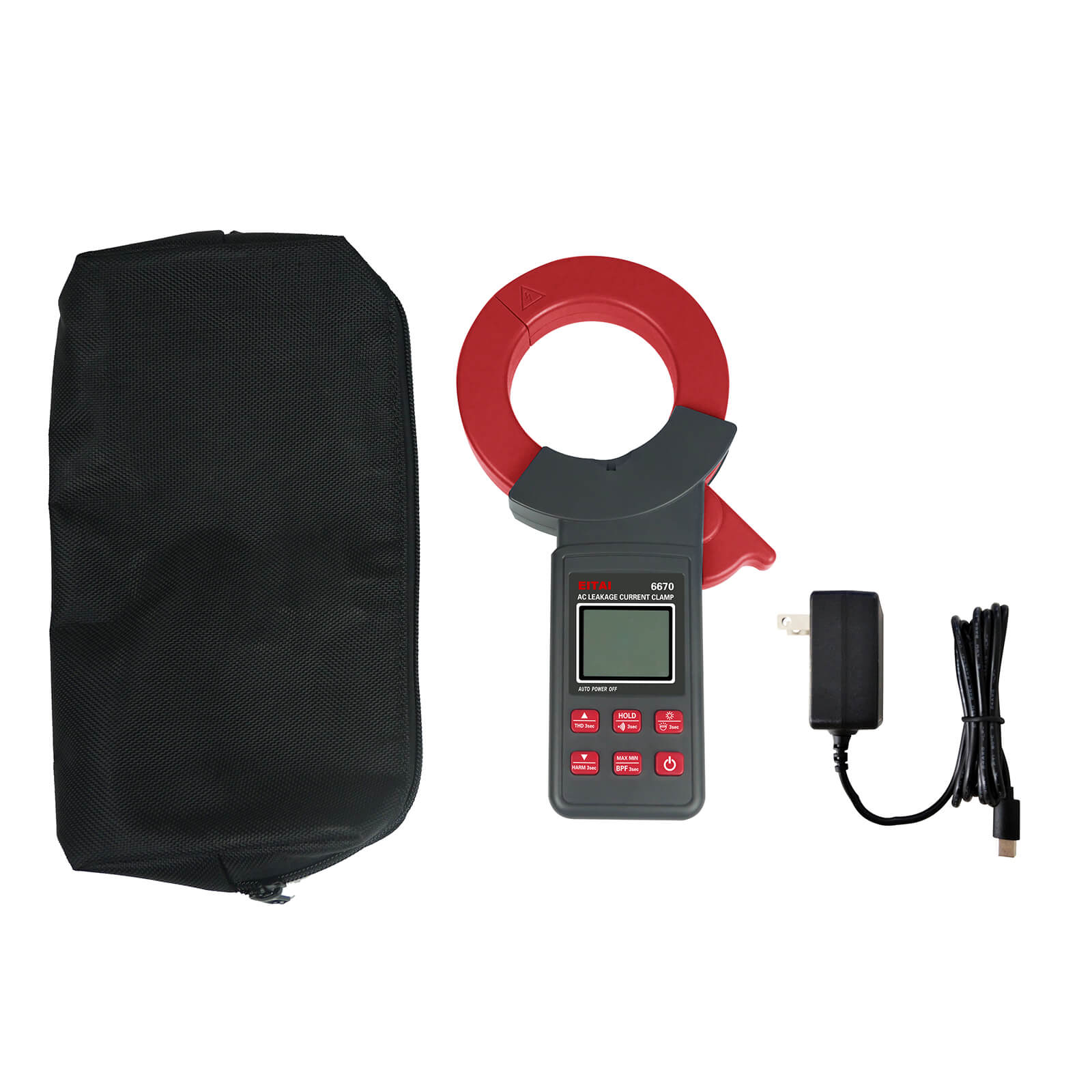

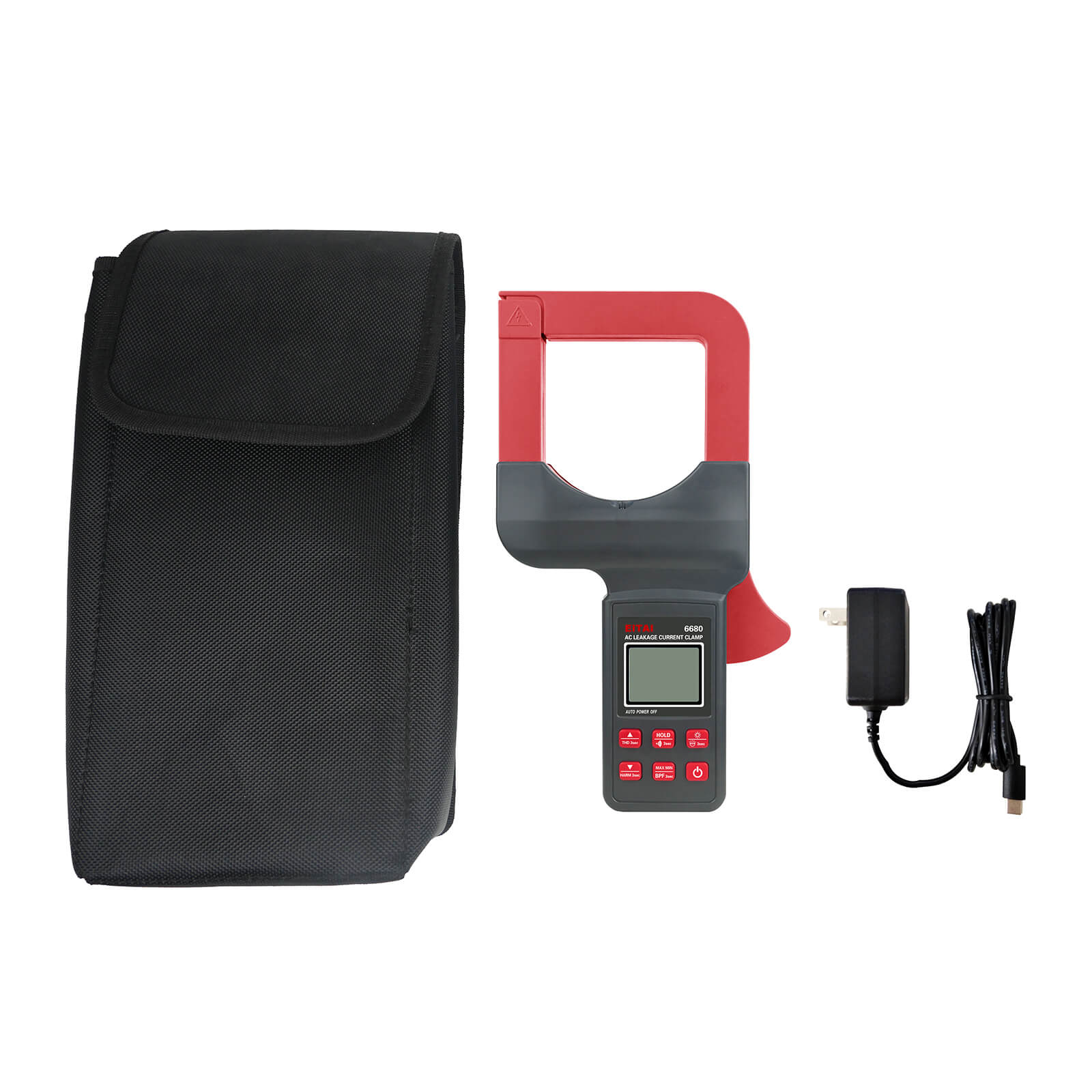

Clamp Meter

1 PCS

Tool bag

1 PCS

Charger

1 PCS

Warranty Card / Qualification Certificate

1 SET

User Manual

1 PCS

Product ModelClamp Jaw SizeRangeSolutionCommunication  MethodOthers
EITAI6000Φ7mmAC/DC 0mA-60.0AAC/DC 1mAUSB
EITAI6000B16mm×18mmAC/DC 0mA-60.0AAC/DC 1mAUSB
EITAI630025mm×30 mmAC 0.000mA-60.0AAC 1uAUSB
EITAI6540Φ40mmAC 0.00mA-300AAC 10uA--
EITAI6640Φ40mmAC 0.00mA-300AAC 0.01mABluetoothTrue vitrual value
Harmonics
Flashlight
EITAI6670Φ70mmAC 0.00mA-1200AAC 0.01mABluetoothTrue vitrual value
Harmonics
Flashlight
EITAI668080mm×80mmAC 0.00mA-2000AAC 0.01mABluetoothTrue vitrual value
Harmonics
Flashlight
EITAI6670DΦ70mm

AC 0.0A-1500A

DC 0.0A-2000A

AC/DC 0.1ABluetoothTrue Virtual Value
Harmonic
Flashlight
EITAI6680D80mm×80mm

AC 0.0A-1500A

DC 0.0A-2000A

AC/DC 0.1ABluetoothTrue Virtual Value
Harmonic
Flashlight
EITAI6900Φ200mmAC 0.00A-9999AAC 10mA----
EITAI6920Φ200mm

AC 0mA-10000A

AC 0.1V-750V

DC 0.1V-1000V

0Ω-2kΩ

AC 1mA

AC 0.1V

DC 0.1V

USBSwitching Test
EITAI6920BΦ300mm

AC 0mA-10000A

AC 0.1V-750V

DC 0.1V-1000V

0Ω-2kΩ

AC 1mA

AC 0.1V

DC 0.1V

USBSwitching Test
