EITAI3520 Series 15kV High Voltage Insulation Resistance Meter

$1,149.00 USD
$0.00 USD
$1,149.00 USD
Model: EITAI3520C(15kV MAX, 0.005MΩ~30.0TΩ)
Subtotal: $1,149.00

Free Shipping

Free standard shipping on orders over $99

Deliver in 3-10 business days

Free Returns

30-Day No-Hassle Returns

2-Year Warranty

Safe & Secure Checkout.

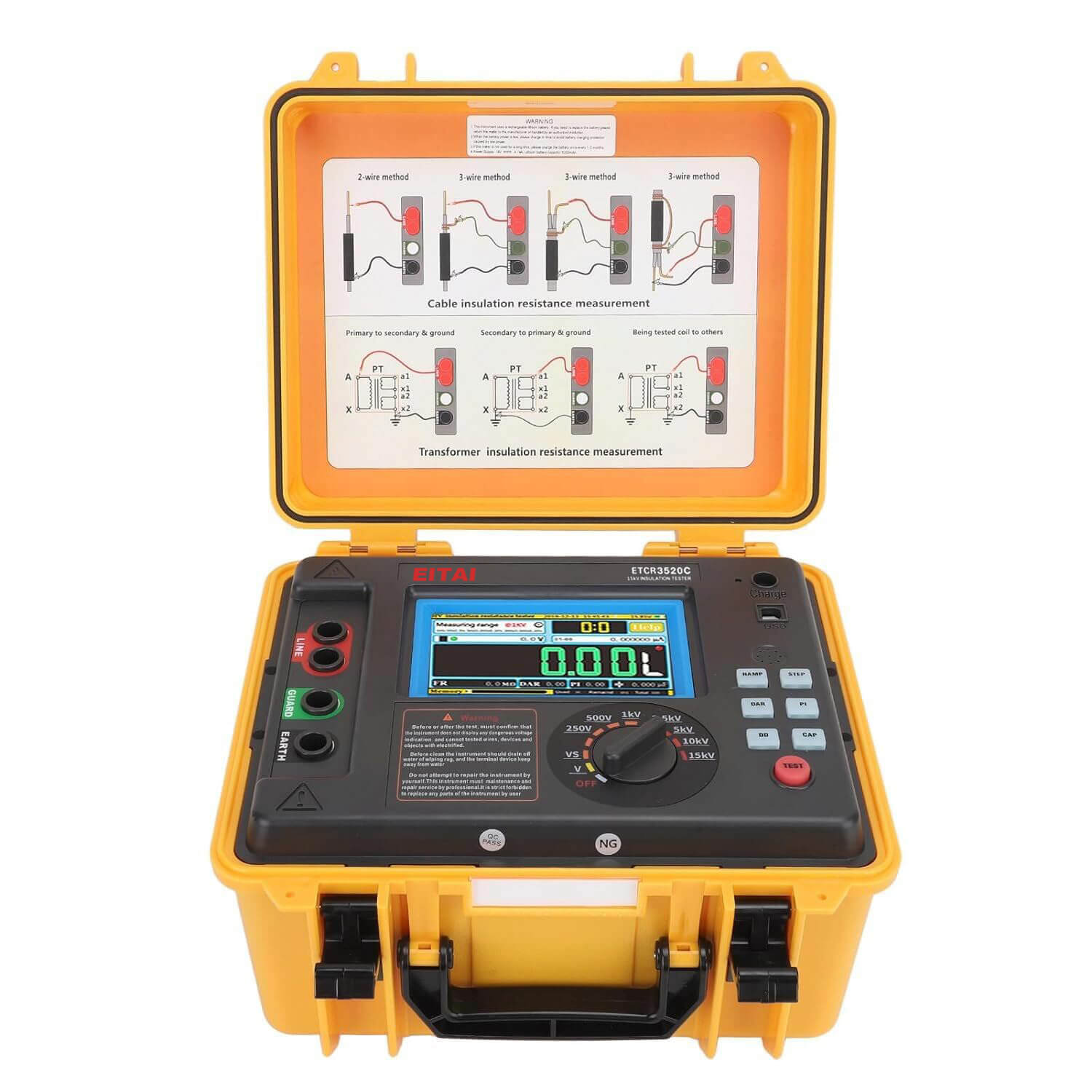

EITAI3520 Series 15kV High Voltage Insulation Resistance Meter

EITAI3520 Series 15kV High Voltage Insulation Resistance Meter

$0.00 $1,149.00

EITAI3520 Series 15kV High Voltage Insulation Resistance Meter

$0.00 $1,149.00
Model: EITAI3520C(15kV MAX, 0.005MΩ~30.0TΩ)

About this item

  • 【Advanced Testing Capabilities】EITAI3520C High Voltage Insulation Resistance Tester measures insulation resistance up to 30.0TΩ with output voltages ranging from 250V to 15kV. Short Circuit Current ≥7mA. Perfect measurement feature including V, IR, PI, DAR, STEP, RAMP, DD, and CAP. Customize voltage and test duration funtion for specific applications.
  • 【User-Friendly Interface】The Insulation Resistance Meter equipped with 5-inch color touchscreen for easy navigation and data viewing. Intuitive operation with rotary switch and buttons. On-screen HELP function for quick guidance.
  • 【Convenient Connectivity】Transfer data to your PC or to your mobile device. Large internal memory stores up to 1000 test records. Real-time monitoring of current, voltage, and temperature.
  • 【Safety & Durability】Automatic discharge function ensures safety after testing. Double-shell waterproof structure for added durability. Lightweight and portable design for field use.
  • 【Long-Lasting Performance】The Megohmmeter equipped with 6400mAh rechargeable battery offers up to 8-hour battery life. Automatic shutdown feature conserves battery life.

Product description

EITAI3520C High Voltage Insulation Resistance Tester

EITAI3520C High Voltage Insulation Resistance Tester-Major Functions

Core Specifications:

  1. Rated Voltage: 250V, 500V, 1kV, 2.5kV, 5kV, 10kV, 15kV
  2. Insulation Resistance Range: 0.005MΩ - 30.0TΩ
  3. Short Circuit Current: ≥7mA Max

Perfect measurement feature:

  1. Step Test (STEP)
  2. Ramp Test (RAMP)
  3. Insulation Resistance Test (IR)
  4. Polarization Index Test (PI)
  5. Dielectric Absorption Ratio Test (DAR)
  6. Voltage Measurement (V)
  7. Dielectric Discharge Index (DD)
  8. Distributed Capacitance Measurement (CAP)

EITAI3520C High Voltage Insulation Resistance Meter-Key Features

Convenient Connectivity:

  1. PC Link: Easily transfer data to your computer for further analysis and record keeping.
  2. Mobile Connectivity: Connect to your mobile device for on-the-go access to test results.

Durable & Reliable:

  1. Waterproof Case: Protects the instrument from dust and moisture.
  2. Large Storage Capacity: Stores up to 1000 test records.
  3. Long-Lasting Battery: 6400mAh battery, to ensure long-term testing work.

User-Friendly Features:

  1. 5-inch Color Touchscreen: Offers easy navigation and data visualization.
  2. Automatic Discharge Function: Ensures safety after testing.
  3. Customizable Settings: Allows you to set the desired voltage and test duration.

Measurement Range & Accuracy

Output VoltageInsulation Resistance Measurement RangeMeasurement Accuracy
50V0.005MΩ-10.0GΩ±5%rdg±3dgt
10.0GΩ-100GΩ±10%rdg±3dgt
250V0.05MΩ-50.0GΩ±5%rdg±3dgt
50.0GΩ-500GΩ±10%rdg±3dgt
500V0.10MΩ-100GΩ±5%rdg±3dgt
100GΩ-1.00TΩ±10%rdg±3dgt
1kV0.50MΩ-200GΩ±5%rdg±3dgt
200GΩ-2.00TΩ±10%rdg±3dgt
2.5kV1.00MΩ-1.00TΩ±5%rdg±3dgt
1.00TΩ-5.00TΩ±10%rdg±3dgt
5kV2.00MΩ-2.00TΩ±5%rdg±3dgt
2.00TΩ-10.0TΩ±10%rdg±3dgt

10kV

(EITAI3520B,EITAI3520C only)

5.00MΩ-4.00TΩ±5%rdg±3dgt
4.00TΩ-20.0TΩ±10%rdg±3dgt

15kV

(EITAI3520C only)

10.0MΩ-6.00TΩ±5%rdg±3dgt
6.00TΩ-30.0TΩ±10%rdg±3dgt



Technical Specifications

Power SupplyRechargeable lithium battery 6400mAh 14.8V
Display Mode5 inch TFT true-color touch screen
Insulation Resistance Test Range

EITAI3520C: 0.005MΩ-30.0TΩ

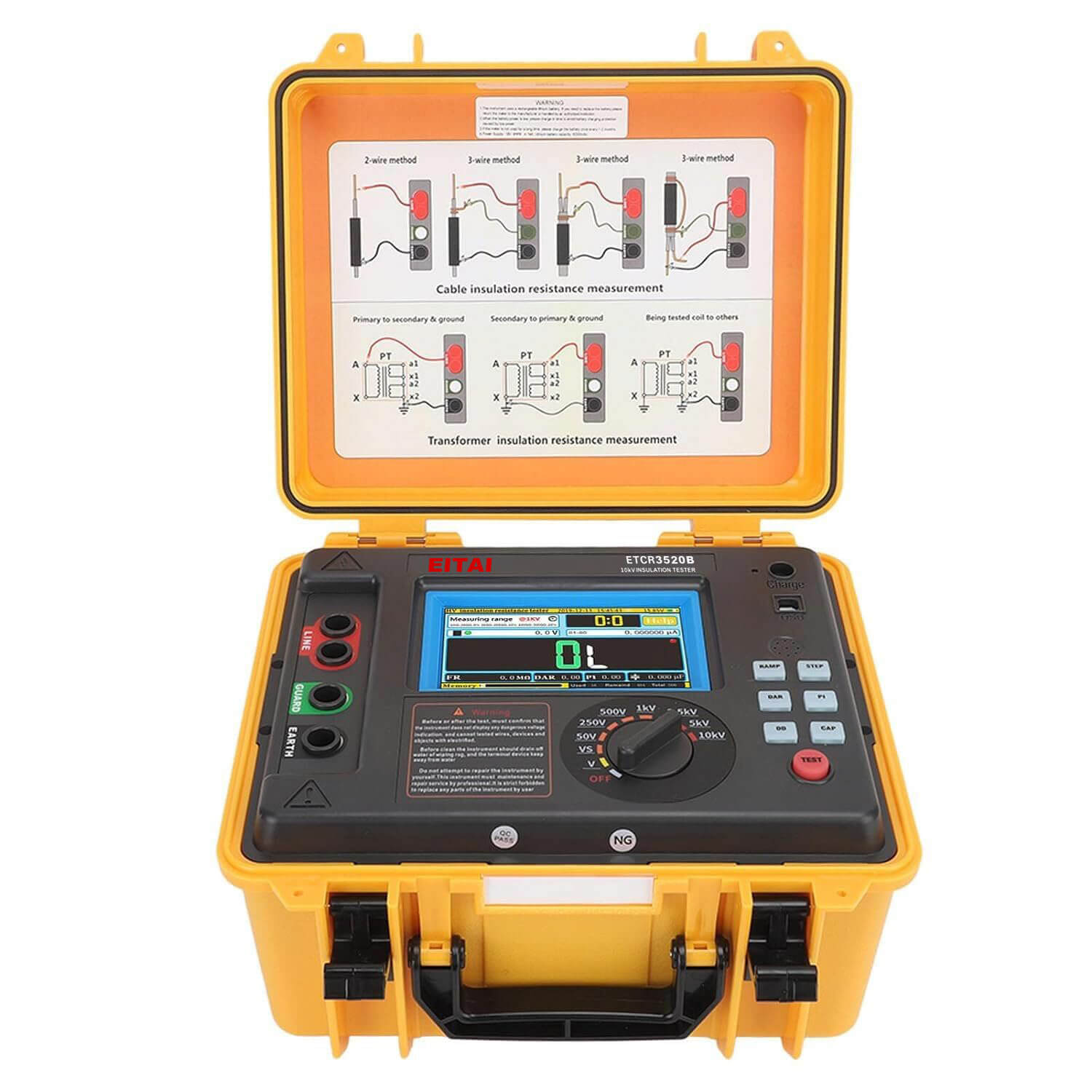

EITAI3520B: 0.005MΩ-20.0TΩ

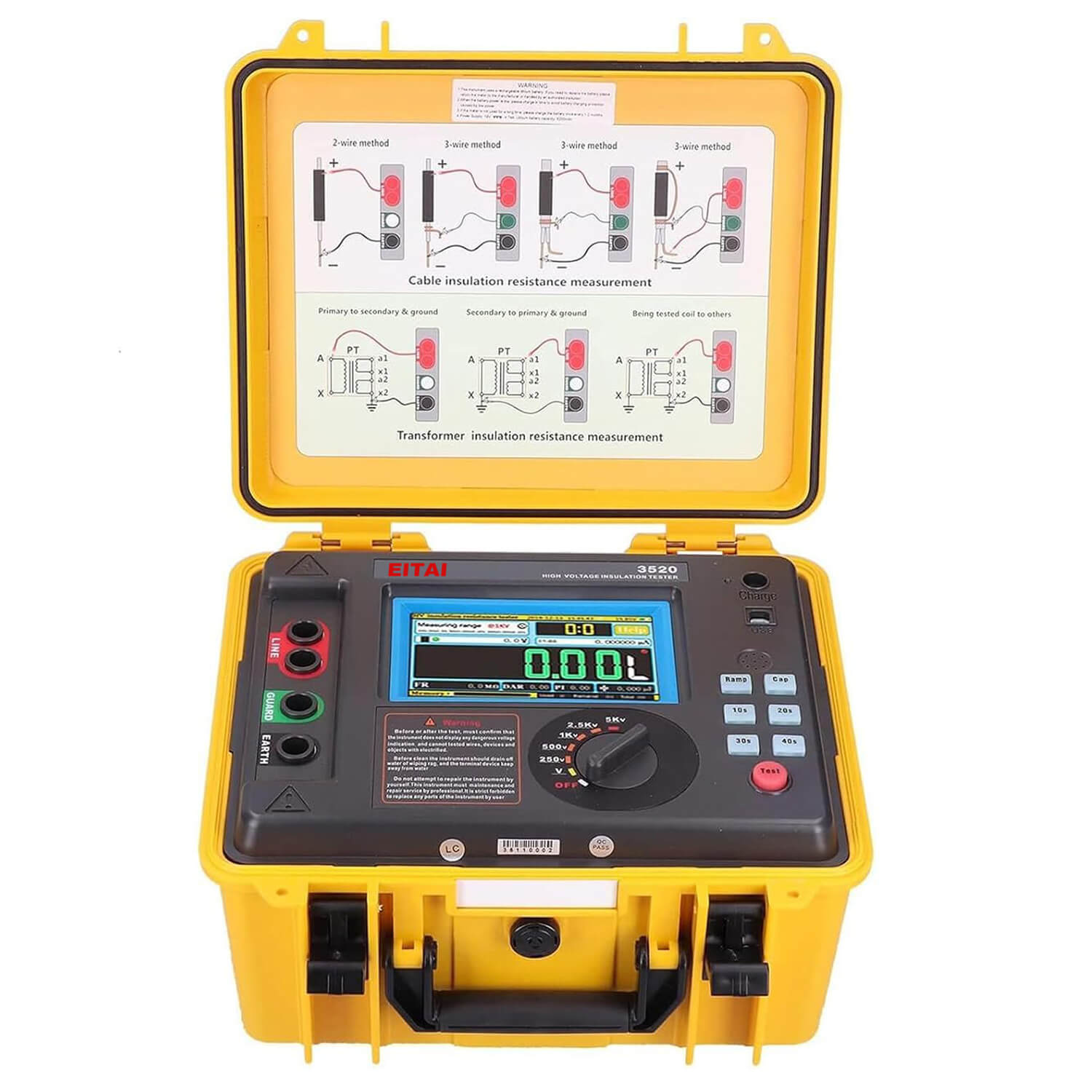

EITAI3520: 0.005MΩ-10.0TΩ
Output Voltage Gear50V, 250V, 500V, 1kV, 2.5kV, 5kV, 10kV, 15kV
Output Voltage Accuracy(5%-10%) ±10V
Voltage Measurement RangeRange: DC:0V-1000V; Range: AC:0V-700V;
Voltage Measurement AccuracyAccuracy ±5%rdg±3V
Capacitance Test RangeRange: 10nF-200uF;
Capacitance Test Accuracy Accuracy ±10%rdg±10nF
Real Time Current DisplayDisplay the test current value, current display range: 0.001nA-7.5mA
Short Circuit Current7mA MAX
Real Time Voltage DisplayReal time monitoring the voltage of the tested terminal,in the non-test state, when the voltage is larger than 36V, the test is prohibited to protect the safety of the instrument and the operator.
Test TimerAutomatic record test time, time range: 0s-9999s
Test TimeAfter selecting the DAR, PI and DD test options, the test will be stopped immediately after the test result is obtained; in the custom test mode, the test duration can be set by user: in the normal test mode, the test time is not limited, and the operator can manually stop the test.
Custom Setting Test Time10s-3600s
Self-set Output Voltage

EITAI3520C: 40-15kV
EITAI3520B: 40-10kV
EITAI3520: 40-5kV
Polarization Index(PI)YES
Dielectric Absorption Ratio(DAR)YES
Step Test(STEP)YES
Ramp Test(RAMP)YES
Dielectric Discharge (DD)YES
Store FunctionAutomatically store the test data 1000 groups, which can reply the test record in tester
USB CommunicationYes, the test record can upload to the PC through USB cable
Bluetooth CommunicationYes, can be connected to Android phones or other devices with Bluetooth communication function.
Battery Power DisplayWith battery power display, when battery voltage low will remind to charge in time
Automatic ShutdownAfter 15 minutes start up will shut down automatically without any operation
Tester DimensionAbout 280mm×260mm×160mm
Tester WeightInstrument weight: about 3517g (include battery); total weight: about 5.7kg(include accessory)
Protection LevelClose the case IP65, open the case IP40
Insulation Resistance50MΩ (1000V)(between the test circuit and shell)
Withstand VoltageAC 3kV 50Hz 1min(between the test circuit and shell)
Suitable Safety StandardIEC61010-1, IEC61326-1
Working Environment-20℃~50℃; 80%RH
Protection LevelClose the case IP65, open the case IP40

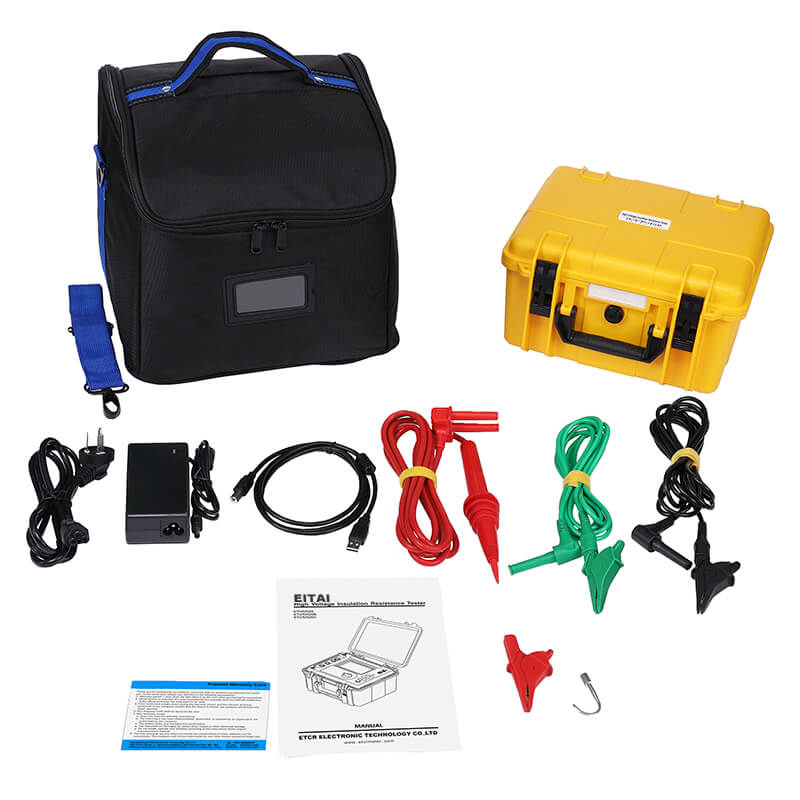

Tester1 PCS
High Voltage Rod(Red, 3m)1 PCS
Alligator Clip Test Line( each 1 PCS of black and green.3m)2 PCS
Alligator Clip Test Line1 PCS
Hook1 PCS
USB Communication Cable1 PCS
Charger(6.2Ah,14.8v)1 PCS

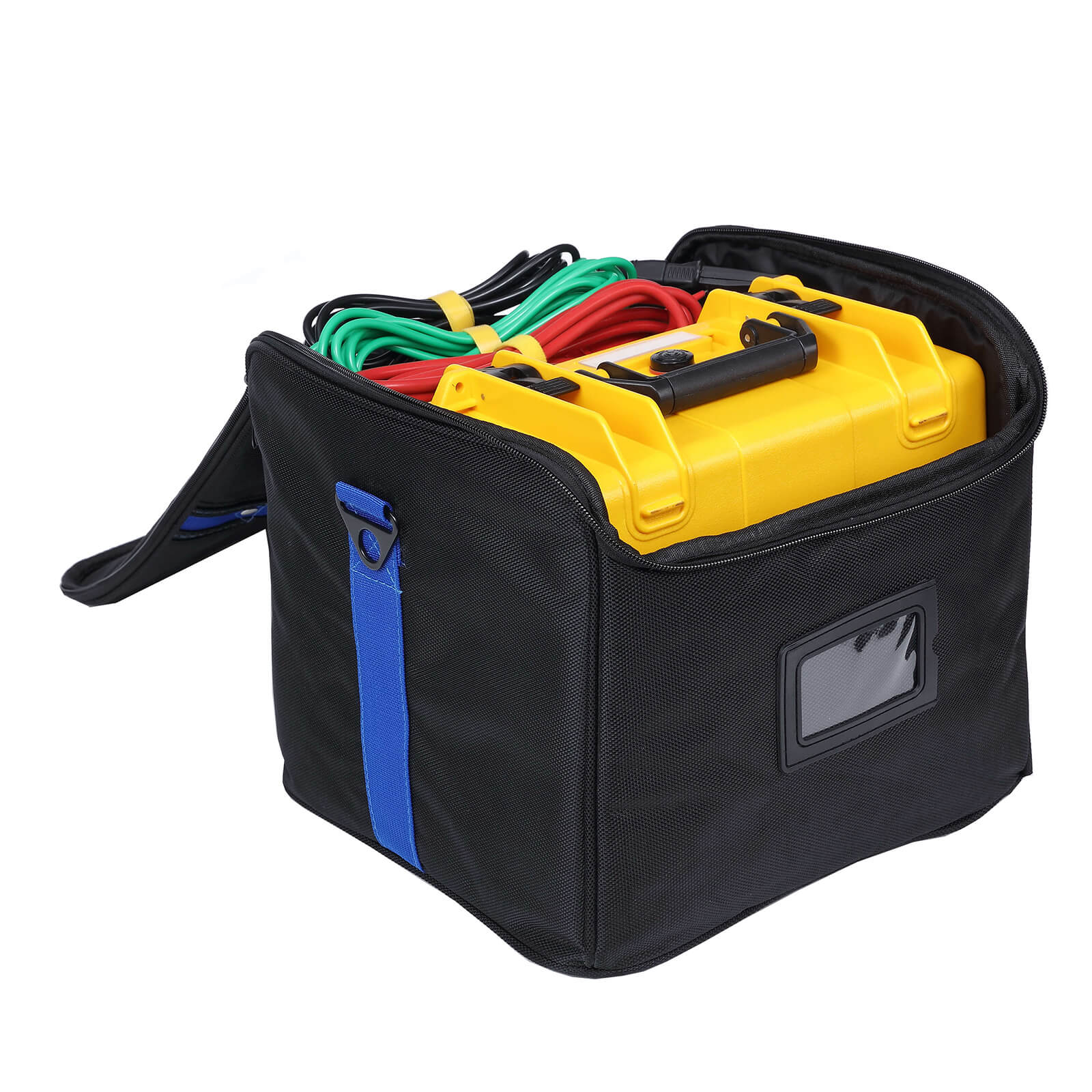

Instrument Bag1 PCS
Warranty Card/Qualification Certificate1 Set
Manual1 PCS
SoftwardDownload
Product ModelTest CurrentOutput VoltageResistance RangeTest FunctionBluetooth
EITAI35005mA50V~5kV0.005MΩ~5TΩPolarization index
Dielectric absorption ratio
Ramp test
Step test
Voltage
Yes
EITAI3500B5mA50V~10kV0.005MΩ~10TΩPolarization index
Dielectric absorption ratio
Ramp test
Step test
Voltage
Yes
EITAI35207mA50V~5kV0.005MΩ~10TΩPolarization index
Dielectric absorption ratio
Ramp test
Step test
Voltage
Discharge Dielectric
Capacitance
Yes
EITAI3520B7mA50V~10kV0.005MΩ~20TΩPolarization index
Dielectric absorption ratio
Ramp test
Step test
Voltage
Discharge Dielectric
Capacitance
Yes
EITAI3520C7mA50V~15kV0.005MΩ~30TΩPolarization index
Dielectric absorption ratio
Ramp test
Step test
Voltage
Discharge Dielectric
Capacitance
Yes
