EITAI3500 Series 10kV High Voltage Insulation Resistance Meter

$659.00 USD
$0.00 USD
$659.00 USD
Model: EITAI3500B(10kV MAX, 0.005MΩ~10.0TΩ)
Subtotal: $659.00

Free Shipping

Free standard shipping on orders over $99

Deliver in 3-10 business days

Free Returns

30-Day No-Hassle Returns

2-Year Warranty

Safe & Secure Checkout.
EITAI3500 Series 10kV High Voltage Insulation Resistance Meter

EITAI3500 Series 10kV High Voltage Insulation Resistance Meter

$0.00 $659.00

EITAI3500 Series 10kV High Voltage Insulation Resistance Meter

$0.00 $659.00
Model: EITAI3500B(10kV MAX, 0.005MΩ~10.0TΩ)

About this item

  • 【Advanced Testing Capabilities】EITAI3500 series High Voltage Insulation Resistance Tester measures insulation resistance up to 10.0TΩ with output voltages ranging from 250V to 10kV. Short Circuit Current ≥5mA. Perfect measurement feature including V, IR, PI, DAR, STEP, and RAMP. Customize voltage and test duration funtion for specific applications.
  • 【User-Friendly Interface】The Insulation Resistance Meter equipped with 5-inch color touchscreen for easy navigation and data viewing. Intuitive operation with rotary switch and buttons. On-screen HELP function for quick guidance.
  • 【Convenient Connectivity】Transfer data to your PC or to your mobile device. Large internal memory stores up to 1000 test records. Real-time monitoring of current, voltage, and temperature.
  • 【Safety & Durability】Automatic discharge function ensures safety after testing. Double-shell waterproof structure for added durability. Lightweight and portable design for field use.
  • 【Long-Lasting Performance】The Megohmmeter equipped with 5200mAh rechargeable battery offers up to 8-hour battery life. Automatic shutdown feature conserves battery life.

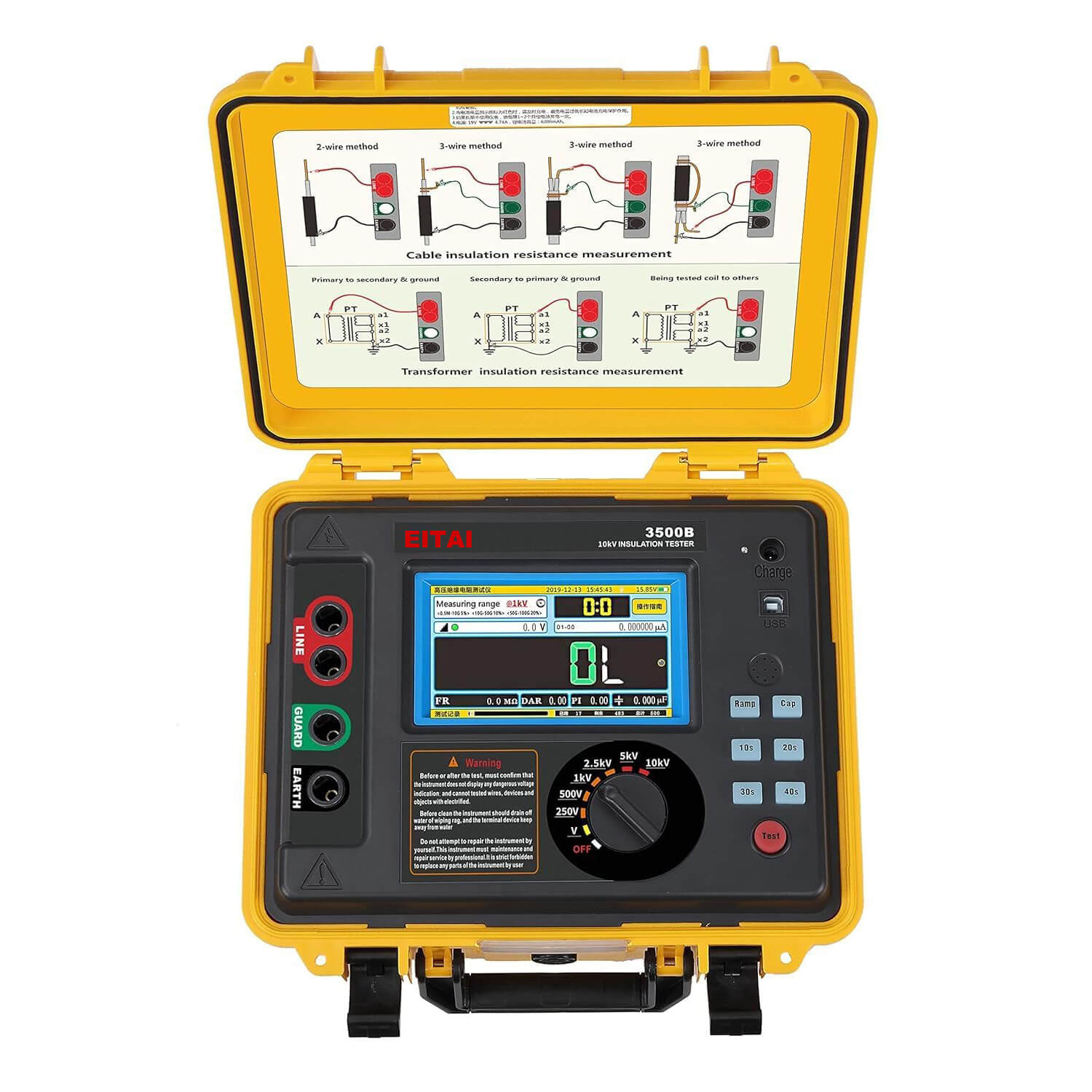

EITAI3500B High Voltage Insulation Resistance Tester

EITAI3500B High Voltage Insulation Resistance Tester-Major Functions

Core Specifications:

  1. Rated Voltage: 250V, 500V, 1kV, 2.5kV, 5kV, 10kV
  2. Insulation Resistance Range: 0.005MΩ - 10.0TΩ
  3. Short Circuit Current: ≥5mA Max

Perfect measurement feature:

  1. Step Test (STEP)
  2. Ramp Test (RAMP)
  3. Insulation Resistance Test (IR)
  4. Polarization Index Test (PI)
  5. Dielectric Absorption Ratio Test (DAR)
  6. Voltage Measurement (V)

EITAI3500B High Voltage Insulation Resistance Meter-Key Features

Convenient Connectivity:

  1. PC Link: Easily transfer data to your computer for further analysis and record keeping.
  2. Mobile Connectivity: Connect to your mobile device for on-the-go access to test results.

Durable & Reliable:

  1. Large Storage Capacity: Stores up to 1000 test records.
  2. Waterproof Case: Protects the instrument from dust and moisture.
  3. Long-Lasting Battery: 5200mAh battery, to ensure long-term testing work.

User-Friendly Features:

  1. 5-inch Color Touchscreen: Offers easy navigation and data visualization.
  2. Automatic Discharge Function: Ensures safety after testing.
  3. Customizable Settings: Allows you to set the desired voltage and test duration.

    Measurement Range & Accuracy

    Output VoltageInsulation Resistance Measurement RangeMeasurement Accuracy
    50V0.005MΩ-5.00GΩ±5%rdg±3dgt
    5.00GΩ-50.0GΩ±10%rdg±3dgt
    250V0.05MΩ-25.0GΩ±5%rdg±3dgt
    25.0GΩ-250GΩ±10%rdg±3dgt
    500V0.10MΩ-50.0GΩ±5%rdg±3dgt
    50.0GΩ-500GΩ±10%rdg±3dgt
    1kV0.50MΩ-100GΩ±5%rdg±3dgt
    100GΩ-1.00TΩ±10%rdg±3dgt
    2.5kV1.00MΩ-250GΩ±5%rdg±3dgt
    250GΩ-2.50TΩ±10%rdg±3dgt
    5kV2.00MΩ-500GΩ±5%rdg±3dgt
    500GΩ-5.00TΩ±10%rdg±3dgt

    10kV

    (EITAI3500B only)

    5.00MΩ-1.00TΩ±5%rdg±3dgt
    1.00TΩ-10.0TΩ±10%rdg±3dgt



    Technical Specifications

    Power SupplyRechargeable lithium battery 5200mAh 14.8V
    Display Mode5 inch TFT true-color touch screen
    Insulation Resistance Test RangeEITAI3500B: 0.005MΩ-10.0TΩ
    EITAI3500: 0.005MΩ-5.0TΩ
    Output Voltage Gear50V, 250V, 500V, 1kV, 2.5kV, 5kV, 10kV
    Output Voltage Accuracy(5%-10%) ±10V
    Voltage Measurement RangeDC:0V-1000V; AC:0V-700V
    Voltage Measurement AccuracyAccuracy ±5%rdg±3V
    Real Time Current DisplayDisplay the test current value, current display range: 0.001nA-5mA
    Short Circuit Current5mA MAX
    Real Time Voltage DisplayReal time monitoring the voltage of the tested terminal,in the non-test state, when the voltage is larger than 36V, the test is prohibited to protect the safety of the instrument and the operator.
    Test TimerAutomatic record test time, time range: 0s-9999s
    Test TimeAfter selecting the DAR, PI test options, the test will be stopped immediately after the test result is obtained; in the custom test mode, the test duration can be set by user: in the normal test mode, the test time is not limited, and the operator can manually stop the test.
    Custom Setting Test Time10s-3600s
    Self-set Output Voltage

    EITAI3500B: 40V-10kV
    EITAI3500: 40V-5kV
    Polarization Index(PI)YES
    Dielectric Absorption Ratio(DAR)YES
    Step Test(STEP)YES
    Ramp Test(RAMP)YES
    Dielectric Discharge (DD)YES
    Store FunctionAutomatically store the test data 1000 groups, which can reply the test record in tester
    USB CommunicationYes, the test record can upload to the PC through USB cable
    Bluetooth CommunicationYes, can be connected to Android phones or other devices with Bluetooth
    communication function.
    Battery Power DisplayWith battery power display, when battery voltage low will remind to charge in time
    Automatic ShutdownAfter 15 minutes start up will shut down automatically without any operation
    Tester DimensionAbout 280mm×260mm×160mm
    Tester WeightInstrument weight: about 3412g(include battery); total weight: about  5.7kg(include accessory)
    Protection LevelClose the case IP65, open the case IP40
    Insulation Resistance50MΩ (1000V)(between the test circuit and shell)
    Withstand VoltageAC 3kV 50Hz 1min(between the test circuit and shell)
    Suitable Safety StandardIEC61010-1, IEC61326-1
    Working Environment-20℃~50℃; 80%RH
    Store Environment-25℃~65℃; 80%RH

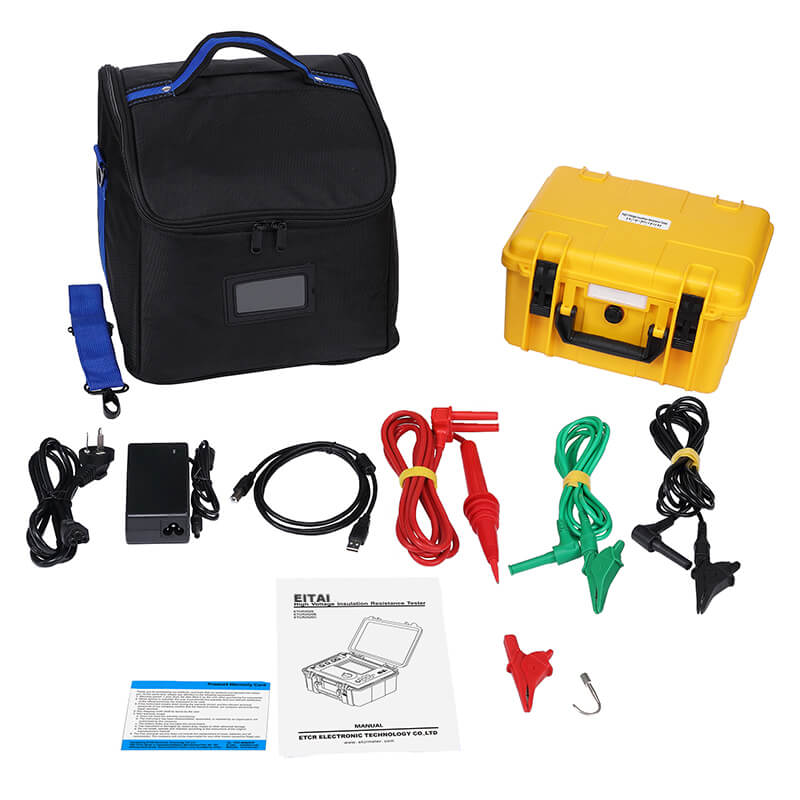

    Tester1 PCS
    High Voltage Rod(Red, 3m)1 PCS
    Alligator Clip Test Line( each 1 PCS of black and green.3m)2 PCS
    Alligator Clip Test Line1 PCS
    Hook1 PCS
    USB Communication Cable1 PCS
    Charger(5.2Ah,14.8v)1 PCS

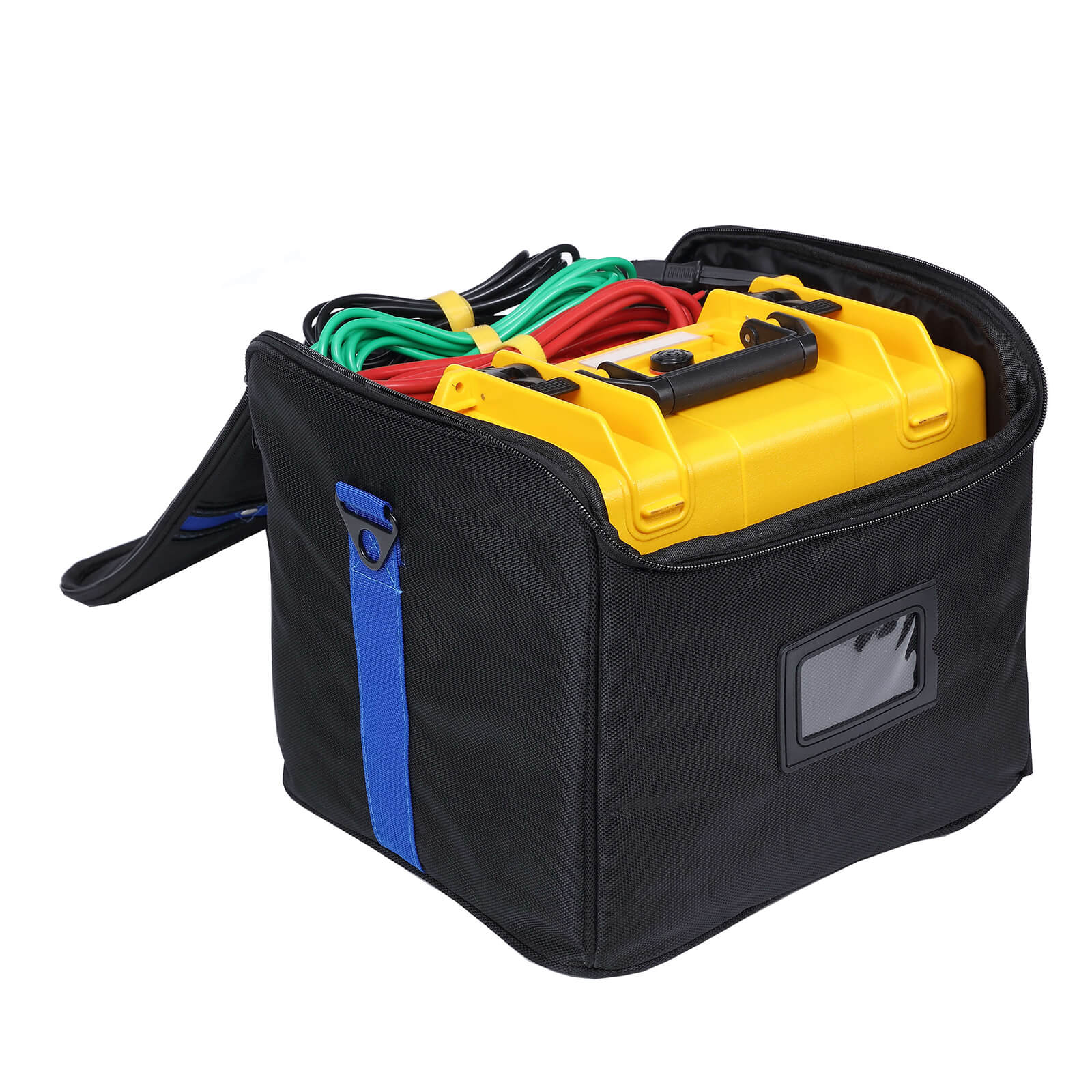

    Instrument Bag1 PCS
    Warranty Card/Qualification Certificate1 Set
    Manual1 PCS
    SoftwardDownload
    Product ModelTest CurrentOutput VoltageResistance RangeTest FunctionBluetoothUSB
    EITAI35005mA50V~5kV0.005MΩ~5TΩPolarization index
    Dielectric absorption ratio
    Ramp test
    Step test
    Voltage
    YesYes
    EITAI3500B5mA50V~10kV0.005MΩ~10TΩPolarization index
    Dielectric absorption ratio
    Ramp test
    Step test
    Voltage
    YesYes
    EITAI35207mA50V~5kV0.005MΩ~10TΩPolarization index
    Dielectric absorption ratio
    Ramp test
    Step test
    Voltage
    Discharge Dielectric
    Capacitance
    YesYes
    EITAI3520B7mA50V~10kV0.005MΩ~20TΩPolarization index
    Dielectric absorption ratio
    Ramp test
    Step test
    Voltage
    Discharge Dielectric
    Capacitance
    YesYes
    EITAI3520C7mA50V~15kV0.005MΩ~30TΩPolarization index
    Dielectric absorption ratio
    Ramp test
    Step test
    Voltage
    Discharge Dielectric
    Capacitance
    YesYes
